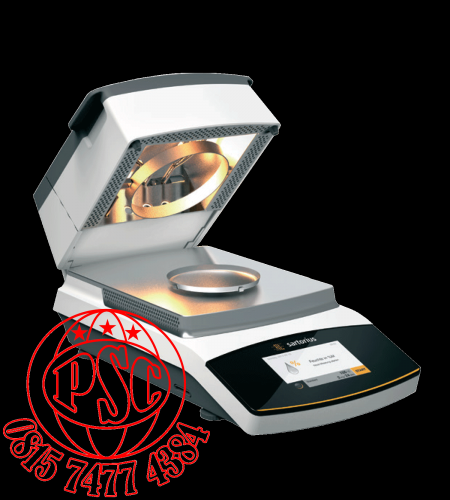

MA160 Infrared Moisture Analyzer Sartorius

MA160 Infrared Moisture Analyzer Sartorius

Technical Specifications

Max. weighing capacity

200 g

Reproducibility, typical

Starting at an initial sample weight of approx. 1 g : ±0.2 %,

Starting at an initial sample weight of approx. 5 g : ±0.05 %

Readability

1 mg, 0.01 %

Typical sample quantity

5 g – 15 g

Display modes for results

Moisture content in % M and % g | dry weight in % S and g | ATRO ( ratio ) in % M/S

Temp. range and settings

40 °C  – 200 °C, in increments of 1 °C

Standby temperature selectable from 50 °C – 120 °C

Sample heating

Infrared heating using an AURI heating unit, 600 W

Heating programs

Standard drying, gentle drying, MA35 mode

Shutoff parameter

Fully automatic, semi-automatic, manual and with timer settings

Forceps for samples

For easy handling of sample pans

Data interface

Mini USB port;  automatic printer detection, direct transfer to Microsoft® Office

Data transfer

SD card; function for importing and exporting methods and results

Housing dimensions  (W+D+H)

215 + 400 + 210 mm ( 8.5“ + 15.7“ + 8.3“ )

Weight

Approx. 6.2 kg ( approx. 13.6 lbs.)

Accessories

6965542

Disposable sample pans, 80 units, aluminum, 90 mm ɸ

6906940

Glass fiber pads for analysis of pasty and fatty samples, hard quality; 80 units; 90 mm ɸ

6906941

Glass fiber pads for analysis of liquid and fatty samples, soft quality; 200 units; 90 mm ɸ

YHP01MA

ReproEasy pads, 10 units for perfomance testing to check the functionality of the analyzer’s heating unit and weighing system

YCW512-AC-02

External calibration weight, 100 g ( E2 ) with DAkkS calibration certificate*

YDP40

Standard laboratory printer

YDP30

Premium GLP laboratory printer

YCC03-D09

Adapter cable for connecting a YDP20-OCE printer

YDP20-0CE

Data printer

YST01MA

Forceps for samples

YMD02B (incl. short report)

Customer-specific service for individual method development at the Sartorius Application Laboratory in Goettingen, Germany, or in the USA
