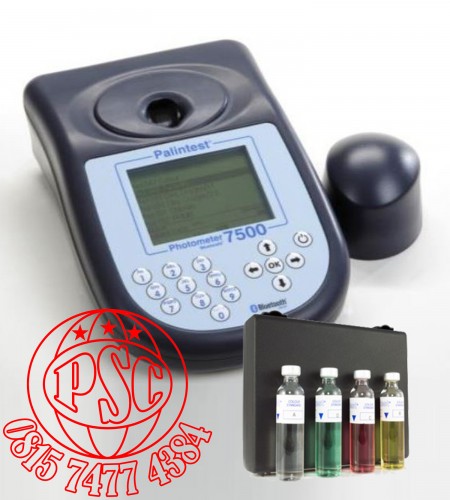

Photometer 7500 Palintest

Photometer 7500 Palintest

Benchtop kit ( PTBR7500 )

Standard kit ( PTBH7500 )

Engineers' kit ( PTBW7500 )

The multiparameter 7500 is our most popular photometer due its versatility and simplicity of use.

Reliable and intuitive Palintest methods combine with data management via the Palintest Aqua Pal app or web portal.

Develop your own tests - load them via the USB port into your photometer with a simple software tool.

Specification

Instrument Type

Dual light source photometer offering direct-reading of pre-programmed test calibrations, Absorbance and Transmittance

Peak Wavelengths

450 nm, 500 nm, 550 nm, 570 nm, 600 nm, 650 nm

Accuracy

± 1.0 % T

Display

320 x 240 pixel LCD with backlight and contrast adjustment

User Interface

On-screen prompts available in English, French, Spanish, German, Italian, Turkish and Mandarin ( Chinese )

Size ( W x L x H ) Weight

150 x 250 x 70 mm, 975 g

IP Rating

IP67

Power Supply

3 x 1.5V AA batteries ( typically 40 hours ), mains power delivered by USB port

Connectivity

Palintest Bluetooth SMART ( 4.0 ) profile and USB for data download

User Defined Methods

Up to 30 additional methods

Memory Capacity

Up to 500 data sets. Each data set includes date, time, sample ID, operator ID, method number, method name, result, units

Test Cuvettes

Automatic centering for cylindrical cuvettes from 13 to 20 mm OD

PT804 - Photometer Check Standards

Palintest Check Standards are traceable reference materials defined in terms of % Transmittance ( %T ) at a particular wavelength, and are ideal in confirming a Palintest Photometer is conforming to specification.

Each standard in the kit enables users to check each of the individual wavelengths in the photometer.
