TSS Meter 740 Partech

740 Portable Suspended Solids Monitor Partech

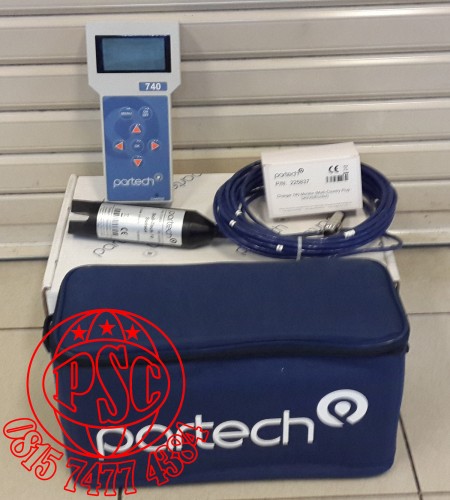

The 740 Monitor provides, quick and accurate readings of Suspended Solids, Sludge Blanket Level, and Turbidity via an intuitive menu structure from a totally portable package. The robust IP65 enclosure incorporates a security strap and protective case to prevent accidental dropping, impact damage and abrasion of the display surface. The display itself is a high contrast LCD that has been designed to work over a wide temperature range with no loss of clarity. A rugged carrying case holds the above, together with the measuring probe, cable, battery charger and instruction manual.
Specifications
Physical
Dimensions ( H x W x D )	Monitor : 224 x 106 x 39 mm
	Sensor : 45 mm Diameter, 155 mm long
Weight	Monitor : 0.5 kg
	Sensor : 0.6 kg ( inc 5 metres of cable )
Protection Class	Electronics : IP65
	Sensor : IP68
Enclosure Material	Monitor : ABS
	Sensor : Black Acetal Co-Polymer
	Bag : Nylon
Cable Entry	Plug for Sensor and Charger
Cable Size	5 mm OD
Cable Length	5 metres standard, 100 metres maximum
Electrical
Power Supply	Rechargeable battery
Charger	90-264 VAC, UK, US, EU and Australian plug style
	Optional Car Charger available
Environmental Data
Operating Temperature	Monitor : -20 to 60 °C
	Sensor : 0 - 60 °C
Storage Temperature	-20 to 60 °C
Location	Indoor/Outdoor, Portable
User Interface
Display	Graphical Display providing 4 1/2 Digits with 2 message lines
Setup	Via 6 button keypad
Units of Measurement	mg/l, g/l, ppm, NTU, FTU, % SS
