kontaktor magnetic 12a

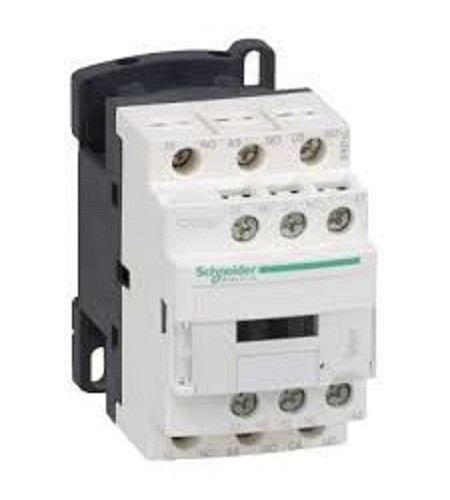

Gambar Produk
kontaktor magnetic 12a
Brand
SCHNEIDER
Minimum Pembelian
1 piece
Maximum Pembelian
10 piece
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Timur
Harga
Rp. 327.000
Dilihat Sebanyak
138 kali
Update Terakhir
18-12-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi kontaktor magnetic 12a
LC1D12M7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V
12 A - 220 V AC coil
Main
Range TeSys
Product name TeSys D
Product or component type Contactor
Device short name LC1D
Contactor application Motor control
Resistive load
Utilisation category AC-3
AC-1
AC-4
Poles description 3P
Pole contact composition 3 NO
[Ue] rated operational voltage <= 300 V DC for power circuit
<= 690 V AC 25...400 Hz for power circuit
[Ie] rated operational current 12 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit
25 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit
Motor power kW 7.5 kW at 500 V AC 50/60 Hz AC-3
7.5 kW at 660...690 V AC 50/60 Hz AC-3
5.5 kW at 380...400 V AC 50/60 Hz AC-3
5.5 kW at 415...440 V AC 50/60 Hz AC-3
3 kW at 220...230 V AC 50/60 Hz AC-3
3.7 kW at 400 V AC 50/60 Hz AC-4
Motor power hp 2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
0.5 hp at 115 V AC 50/60 Hz for 1 phase motors
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
Auxiliary contact composition 1 NO + 1 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Overvoltage category III
CV Anugerah tehnik sentosa
Melayani dengan tepat
office :
Jl . Gang awan I . No : 73
Jebres , surakarta 57126.Jawa Tengah
Phone : 0271 - 2942431
HP : 082138922858
WA ; 082138922858
Email : atstehnik@gmail•com
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V
12 A - 220 V AC coil
Main
Range TeSys
Product name TeSys D
Product or component type Contactor
Device short name LC1D
Contactor application Motor control
Resistive load
Utilisation category AC-3
AC-1
AC-4
Poles description 3P
Pole contact composition 3 NO
[Ue] rated operational voltage <= 300 V DC for power circuit
<= 690 V AC 25...400 Hz for power circuit
[Ie] rated operational current 12 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit
25 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit
Motor power kW 7.5 kW at 500 V AC 50/60 Hz AC-3
7.5 kW at 660...690 V AC 50/60 Hz AC-3
5.5 kW at 380...400 V AC 50/60 Hz AC-3
5.5 kW at 415...440 V AC 50/60 Hz AC-3
3 kW at 220...230 V AC 50/60 Hz AC-3
3.7 kW at 400 V AC 50/60 Hz AC-4
Motor power hp 2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
0.5 hp at 115 V AC 50/60 Hz for 1 phase motors
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
Auxiliary contact composition 1 NO + 1 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Overvoltage category III
CV Anugerah tehnik sentosa
Melayani dengan tepat
office :
Jl . Gang awan I . No : 73
Jebres , surakarta 57126.Jawa Tengah
Phone : 0271 - 2942431
HP : 082138922858
WA ; 082138922858
Email : atstehnik@gmail•com
