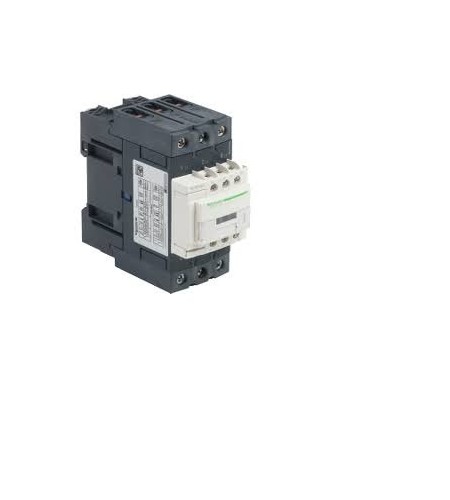

kontaktor 3 phase

 Main Range of product TeSys D

Product or component type Contactor Device

 short name LC1D Contactor application Motor control Resistive load Utilisation category AC-1 AC-2 AC-3 AC-4 Control circuit type AC Coil type Standard Poles description 3P Pole contact composition 3 NO [Ie] rated operational current 50 A ≤ 60 °C AC AC-3 power circuit 80 A ≤ 60 °C AC AC-1 power circuit Control circuit voltage 220 V AC 50/60 Hz Connections - terminals Screw clamp terminal power circuit 1 1...35 mm² flexible without Screw clamp terminal power circuit 2 1...35 mm² flexible with Screw clamp terminal power circuit 1 1...35 mm² flexible with Screw clamp terminal power circuit 2 1...35 mm² flexible without Screw clamp terminal power circuit 1 1...35 mm² solid without Screw clamp terminal power circuit 2 1...25 mm² flexible with Screw clamp terminal power circuit 2 1...25 mm² flexible without Screw clamp terminal power circuit 2 1...35 mm² solid without Screw clamp terminal power circuit 2 1...25 mm² solid without Screw clamp terminal control circuit 1 1...4 mm² flexible without Screw clamp terminal control circuit 2 1...4 mm² flexible without Screw clamp terminal control circuit 1 1...4 mm² flexible with Screw clamp terminal control circuit 2 1...2,5 mm² flexible with Screw clamp terminal control circuit 1 1...4 mm² solid without Screw clamp terminal control circuit 2 1...4 mm² solid without
