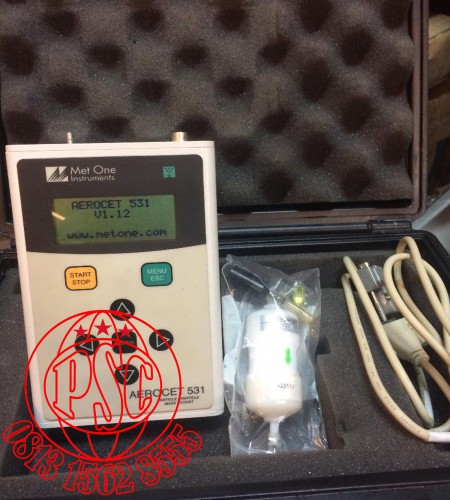

Aerocet 531S Handheld Particle Counter Met One Instrument

Aerocet 531S Handheld Particle Counter Met One Instrument

Specifications

Mass Mode

531S

Mass Concentration Ranges

PM1, PM2.5, PM4, PM7, PM10, and TSP

Concentration Range

0 – 1 mg/m3

Sample Time - Mass Mode

2 Minutes

Particle Mode

Particle Size Ranges

Two channels—0.5 and 5.0 μm

Concentration Range

0 – 3,000,000 particles per cubic foot ( 105,900 particles/L )

Accuracy

Accuracy  ± 10 %, to calibration aerosol

Sensitivity

0.5 μm @ 2 to 1 peak to valley ( JIS ), 2 to 1 S/N

Sample Time - Particle Mode

1 Minute

Light Source

Laser diode, 5 mW, 780 nm

Flow Rate

0.1 cfm ( 2.83 lpm )

Display

16-character x 4 Line LCD

Connectivity

RS-232

Data Storage

Up to 4,000 records

Operating Temperature

0˚ to +50 ˚C

Storage Temperature

-20˚ to +60 ˚C

AC Adapter/Charger

AC to DC module, 100–240 VAC to 9 VDC @ 350 mA typical

Battery Life

Up to 5 hours of continuous use; up to 8 Hours intermittent Use

Battery Type

6v NiMH

Mass Certifications

Requires proper use of appropriate K-factors for material being measured

Physical Dimensions

6.25” ( 15.9 cm ) H x  4.0” ( 10.2 cm ) W x 2.1” ( 5.4 cm ) D

Weight ( with battery )

1.94 lb   ( 31 oz )   ( 0.88 kg )

Certifications

Meets or exceeds CE, ISO, ASTM, and JIS international certifications

Warranty

Warranted by Met One Instruments for 1 year against defects in workmanship.

Each Met One AEROCET 531S is shipped complete with

Operation Manual

Custom Serial Cable

Communication Software ( Aero-Comm )

AC to DC Converter Module with IEC AC Power Cord

Isokinetic Sample Probe

Screwdriver

Carrying Case

Zero Particulate Filter
