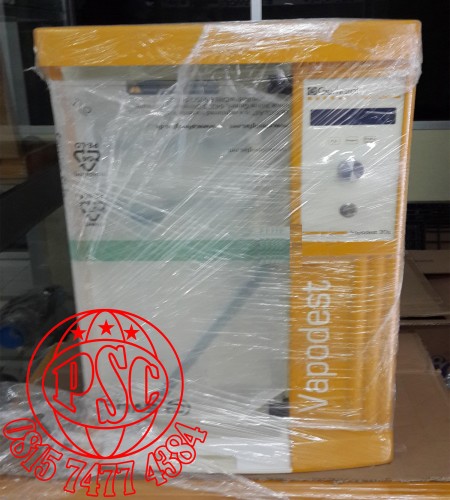

Vapodest 30S Programmable Distillation Systems Gerhardt

Vapodest 20S & 30S Programmable Distillation Systems Gerhardt

Gerhardt has been offering the rapid distillation systems VAPODEST for the steam distillation of Kjeldahl digestion and other samples. The new VAPODEST models offer a state-of-the-art technology. All models have a modern MCU-control, automatic steam generation, RS 485 interface, a corrosion free plastic housing and many more features.

All distillation systems are especially good in handling distillations of Kjeldahl digestion solutions as well as physical seperation methods of water steam soluble materials and volatile acids. For the determination of alcohol it is ideal that the steam power of the steam generator can be reduced to around 70 %. Best results in combination with digestion systems KB, CSB und SMA.

The models offer varying degrees of automation with manual end point titration

Technical Data

Model

Vap 20S

Vap 30S

Cooling water consumption per min

5 L

5 L

Distillation time / sample

2-4 min

2-4 min

Recovery rate %

> 99,5

> 99,5

Reproducibility %

+/- 1

+/- 1

Detection limit N

0,1 mg

0,1 mg

Nominal voltage

230 V AC¹⁾

230 V AC¹⁾

Frequency

50-60 Hz

50 Hz

Nominal wattage

1600 W

1600 W

Weight

25 kg

27 kg

Dimensions mm ( W x d x H )

440 x 340 x 690 mm

440 x 340 x 690 mm

Order No.

12-0020

12-0025

Versatile applications

VAPODEST watersteam - rapid distillation systems are used worldwide e.g. for the determination of nitrate, nitrite, ammonium, Kjeldahl-digestion solutions, volatile acids, sulphur dioxide, ethanol, formaldehyde, phenols as well as other compounds. The fields of application can be found in various matrices, e.g. in:

Food

Feed

Luxury food ( beer, vine, liqueur, spirits )

Cosmetics

Detergents

Environmental samples ( plants, water, soils, sewage sludge )

Rotten material from biogas plants e.t.c.

Protein determination in :

Grain and grain products e.g. aoa C 979.09, 920.87

Eggs and egg products e.g. § 64,05.00,15

Milk and milk products, e.g. § 64,01.00,10

Meat and meat products, e.g. aoa C 928.08

Raw material for breweries, e.g. aoa C 920.53,950.09

Tobacco

Animal feed e.g. aoa C 990.03

Starch

Malt, wort, beer

And many more

Nitrogen determination in :

Soil ( fertilizers ) e.g. aoa C or Din 19684 part 4 or aoa C 973.48

Water e.g. DeV, H11, H28

Substrates

Cellulose

Pulp

Paper

Petroleum

Steel

Coal

And many more.

Water steam distillation

Phenol

Alcohol

Total cyanide

Determination of ammonium

Preservatives

Sulphur dioxide

Volatile nitrogenous base preservatives

Natural rubber

And many more

VAPODEST 20S

VAPODEST model for low sample throughput with simple program procedure :

Automatic NaOH addition, Steam power variable from 40 - 100 %.The 5 x 7 segment LED shows the individual program steps and can display as well up to 9 different error messages.

VAPODEST 30S

The intermediate model is specifically set up with all the following parameters for Kjeldahl distillations, namely :

Automatic addition of NaOH, H2O as well as removal of the sample residues, variable steam power from 40 - 100 %. The 5 x 7 segment LED shows the program steps and can display up to 9 different error messages.
