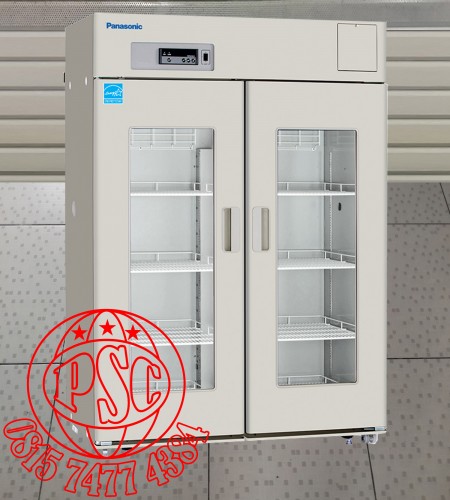

MPR-1411R-PE Pharmaceutical Refrigerator Panasonic

MPR-1411R-PE Pharmaceutical Refrigerator Panasonic

Specifications

Model

MPR-1411-PE

MPR-1411R-PE

External Dim. ( W x D x H )

1440 x 830 x 1950 mm

1440 x 830 x 1950 mm

Internal Dim. (W x D x H )

1320 x 710 x 1500 mm

1320 x 710 x 1500 mm

Volume

1364 litres

1359 litres

Net Weight

248 kg

287 kg

Temperature Setting Range

+2 to +23 °C

+2 to +23 °C

Temperature Control Range

+2 to +23 °C

+2 to +23 °C

Controller

Microprocessor

Microprocessor

Display

LED

LED

Temperature Sensor

Thermistor

Thermistor

Cooling Method

Forced air circulation

Forced air circulation

Defrost Method

Forced type ( cycle defrost ), fully automatic

Forced type ( cycle defrost ), fully automatic

Refrigerant

HFC

HFC

Insulation Material

PUF

PUF

Exterior Material

Painted steel

Painted steel

Interior Material

Painted steel

Painted steel

Outer Doors

2 doors, double pane glass, self closing

2 doors, double pane glass, self closing

Outer Door Lock

Y

Y

Shelves

8 wire shelves, polyethylene-coated

10 coated steel drawers

Drawers

-

-

Max. Load - Per Shelf/Drawer

40 kg

40 kg

Max. Load - Total

40 kg

320 kg

Access Port

3

3

Access Port Position

Left/right/top

Left/right/top

Access Port Diameter

30

30

Casters

4

4

Interior Light

Fluorescent

Fluorescent

Power Failure

V-B-R ( Optional )

V-B-R ( Optional )

High Temperature

V-B-R

V-B-R

Low Temperature

V-B-R

V-B-R

Door Open

V-B

V-B

Power Supply

230 V 50 Hz single phase

230 V 50 Hz single phase

Noise Level

42 dB [ A ]

42 dB [A ]

Accessories

Temperature recorders

Temperature chart recorder

MTR-0621LH-PH

MTR-0621LH-PH

Chart paper

RP-G04-PW

RP-G04-PW

Recorder housing

MPR-S7-PW

MPR-S7-PW

Circular temp. chart recorder

MTR-G04-PW

MTR-G04-PW

Ink pen

PG-R-PW

PG-R-PW

Ext mounting power failure alarm

MPR-48B-PW ( V-B )

MPR-48B-PW ( V-B )

RS485 interface module

MTR-480-PW

MTR-480-PW
