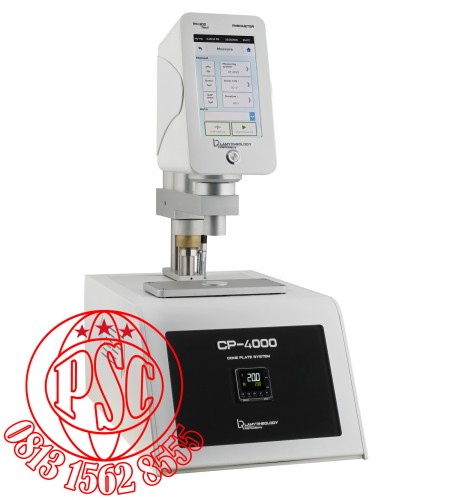

Rheometer RM 200 TOUCH CP4000 Lamy Rheology

Rheometer RM 200 TOUCH CP4000 Lamy Rheology

Type of instrument

Rotating springless rheometer with imposed speeds and 7’’ Touch screen

Rotation speeds

Unlimited number of speeds between 0.3 and 1500 rpm

Torque range

From 0.05 to 30 mNm

Temperature

Temperature range from – 20°C to + 300 °C ( according to models )

Accuracy

+/- 1 % of the full scale

Repeatability

+/- 0,2 %

Display

Viscosity – Speed – Torque – Time –Temperature - Choice of viscosity units : cP/Poises or mPa.s / Pa.s – Shear rate

Security and confidentiality

An “operator” function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code.

There is also a protected mode that locks your measurement conditions.

Language

French/English/Russian/Spanish

Compatible measuring system

MS CP

Supply voltage

90-240 VAC 50/60 Hz

PC connections

Port RS232 and USB

Printer connection

USB Host Port - Compatible

PCL/5

What benefits are there for you?

Save your flow curves and calculate your rheological parameters directly without computer ( Plastic viscosity, flow limit, Thixotropy, Regression models according to Newton, Bingham, Casson and Ostwald ) . Choose your attachment system tailored to your product constraints.

Options

Software ( PN 311002 )

Dimensions and weight

Head

L 180 x W 135 x H 250 mm

CP 4000

D 610 x W 340 x H 650 mm

Weight

22 kg

Activity Domains

Car Industry

Teaching

Chocolate

Food Industry

Cosmetics / Pharmaceuticals

Paint / Ink / Coatings

Chemical / Petroleum Products

Bulding Materials
