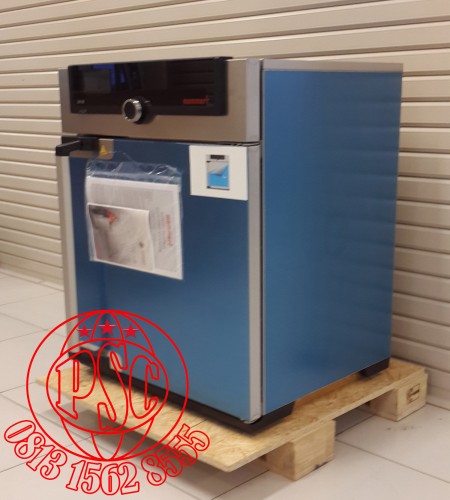

Ovens UF30 Plus, UF53 Plus, UF75 Plus, UF110 Plus Memmert

Standard delivery Universal Oven

Sketch Universal Oven UF30plus

Temperature

Set temperature range in °C min.10 above ambient up to +300

Temperature 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value

Control technology

ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

Language setting German, English, Spanish, French, Polish, Czech, Hungarian

Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function SetpointWAIT  the process time does not start until the set temperature is reached

Calibration three freely selectable temperature values

adjustable parameters    temperature ( Celsius or Fahrenheit ), fan speed, air flap position, programme time, time zones, summertime/wintertime

Ventilation

Fan forced air circulation by quite air turbine, adjustable in 10 % steps for each segment individually

Fresh air admixture adjustment of pre-heated fresh air admixture by air flap control in 10 % steps for each segment individually

Vent vent connection with restrictor flap

Communication

documentation  programme stored in case of power failure

Programming AtmoConTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Standard equipment

Internals 1 stainless steel grid(s), electropolished

Works calibration certificate Calibration at +160°C

Door fully insulated stainless steel door with 2-point locking (compression door lock)

Stainless steel interior UF32 Plus

Interior  easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

Volume 32 l

Dimensions W x H x D in mm w(A) x h(B) x d(C) : 400 x 320 x 250 mm

Max. number of internals 3

Max. loading of chamber 60 kg

Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w ( D ) x h( E ) x d ( F ) : 585 x 704 x 434 mm

Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz approx. 1600 W

Voltage Electrical load 115 V, 50/60 Hz approx. 1600 W

Packing/shipping data/Setting Up

Transport information The appliances must be transported upright

Customs tariff number 8419 8998

Country of origin Federal Republic of Germany

WEEE-Reg.-No. DE 66812464

Dimensions approx incl. Carton B x H x T : 660 x 890 x 650 mm

Net weight approx. 45 kg

Gross weight carton approx. 61 kg

Stainless steel interior UF55 Plus

Interior  easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

Volume 53 l

Dimensions W x H x D in mm w ( A ) x h ( B) x d ( C ) : 400 x 400 x 330 mm

Max. number of internals 4

Max. loading of chamber 80 kg

Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w(D) x h(E) x d(F) : 585 x 784 x 514 mm

Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz approx. 2000 W

Voltage Electrical load115 V, 50/60 Hz approx. 1700 W

Packing/shipping data/Setting Up

Transport information The appliances must be transported upright

Customs tariff number 8419 8998

Country of origin Federal Republic of Germany

WEEE-Reg.-No.DE 66812464

Dimensions approx incl. Carton B x H x T : 730 x 950 x 670 mm

Net weight approx. 57 kg

Gross weight carton approx. 76 kg

Stainless steel interior UF75 Plus

Interior  easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

Volume 74 l

Dimensions W x H x D in mm w ( A ) x h ( B ) x d ( C ) : 400 x 560 x 330 mm

Max. number of internals 6

Max. loading of chamber   120 kg

Max. loading per internal 20 kg

Textured stainless steel casing

Dimensions w ( D ) x h ( E ) x d ( F ) : 585 x 944 x 514 mm

Housing rear zinc-plated steel

Electrical data

Voltage Electrical load 230 V, 50/60 Hz approx. 2500 W

Voltage Electrical load 115 V, 50/60 Hz approx. 1800 W

Packing/shipping data/Setting Up

Transport information The appliances must be transported upright

Customs tariff number 8419 8998

Country of origin Federal Republic of Germany

WEEE-Reg.-No. DE 66812464

Dimensions approx incl. Carton B x H x T : 730 x 1130 x 670 mm

Net weight approx. 66 kg

Gross weight carton approx. 85 kg
