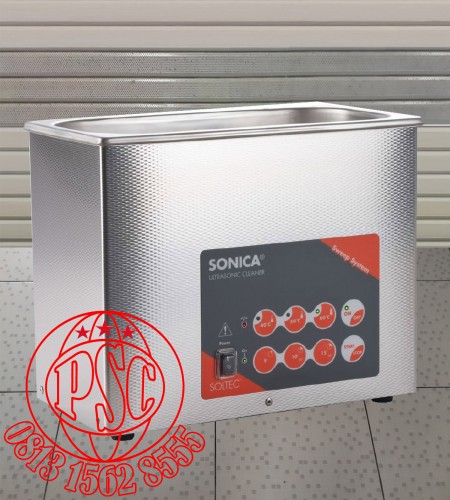

Sonica Ultrasonic Cleaners 2400 S3 Soltec

Technical Data
Main line voltage  230/240 V~50/60 Hz
Main input power/consumption 130 W
Main input power with heating 305 W
Peak HF Ultrasound Power 260 W
US frequency 40 Khz ± 5% with SWEEP SYSTEM Technology
Liquid drain tube 10 x 8 mm
Transducers 2 ( 2 Piezoelectric ceramics each )
Tank capacity [ L ] 4,5
Weight [ KG ] 3,8
Installation category Class II according to EN 61010-1
Environmental conditions Temperature Rel. Hum. 80% up to 31°C with linear
decrease up to 50% at 40°C
IP grade IP 22
CE-compliant  2004/108/EC EMC Directive ( EN61326 )
                      2006/95/EC LV Directive ( EN 61010-1 )
                      93/42/CEE Medical Device Directive
                      Risk Class I according to the rule 12 to the Directive 93/42/EEC Annex IX

Approximately Internal Tank Dimensions
W/D/H ( mm ) 300 / 150 / 100
Max filling volume tank 4,5 L
External Appliance Dimensions
W/D/H ( mm ) 325 / 175 / 260
Max operative volume 3,15 L

Constructive Materials
Housing Stainless steel AISI 304
Tank Stainless steel AISI 304

Accessories
090.004.0003 Stainless steel wire basket Internal dim. 265 x 120 x 45 mm
090.004.0019 Stainless steel lid 2400
090.004.0041 Stainless steel auxiliary tank 2400SonICA Indicative dim. 300 x 150 x 100 mm
090.004.0036 Stainless steel beaker holder for two glass or plastic beaker
090.004.0032 Plastic beaker 250 ml
090.004.0033 Glass beaker 400 ml.
