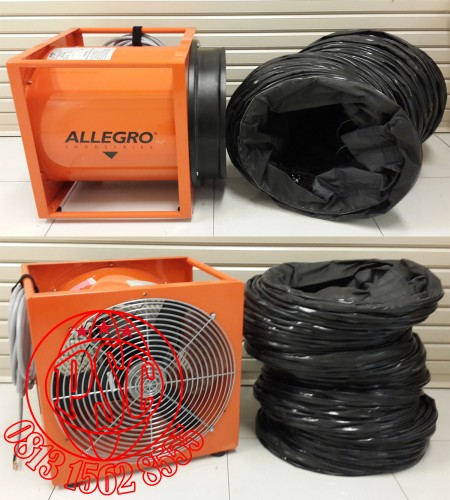

Blower 16” High Output Allegro safety

Blowers Axial : 16” High Output Blower Allegro Safety

Specifications

Product Description

VENTILATION BLOWER, HIGH OUTPUT

Part Number

9516

Style

AXIAL FAN 16” ( 40.6 cm )

General Description

Allegro’s 16” ( 40.6 cm ) High Output blower offers a high powered motor for applications requiring a maximum amount of output. Certified to CSA Standard C22.2 No.113.

Contruction

Complete unit epoxy powder coated in “safety orange”

Interchangeable flange for intake/exhaust side mounting

18 gauge cold rolled steel housing

Bolted motor mount construction

Integrated carrying handles

Steel/chrome plated grill

Equipped with four rubber feet

Motor

HP

2 HP

Certifications

UL Recognized, CSA Certified

Voltage/Hz

115/230V AC, 60 Hz, Single Phase

RPM

3450

Current Draw

21/10.5 A

Cord

25’ ( 7.62 m ) 12/3 AWG, SJOOW-A Neoprene 300 V medium duty

Plug

NEMA 5-30P or NEMA 6-30P ( Twist Lock type )

Fan

Glass reinforced polypropylene ( PPG ) three blade fan with aluminum hub

Moving fan mounted 1 ⅝”( 4.12 cm ) from grill for safety, grill gap-5/16” ( 0.79 cm )

Ducting : ( Optional )

Retractable, non-collapsible design

Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180 °F ( 82.22 °C )

Yellow color with black weather-strip and integrated nylon straps

Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

Blower Dimensions

Length In. ( cm )

Width In. ( cm )

Height In. ( cm )

Weight Lbs. ( Kg )

18” ( 45.7 cm )

18” ( 45.7 cm )

19” ( 48.2 cm )

74 lbs ( 33.4 kg )

Flow Rates

( CFM calculated using 15’ ( 4.57 m ) of 16” ( 40.6 cm ) ducting )

Free Air

One 90° Bend

Two 90° Bends

CFM ( m³ hr )

CFM ( m³hr )

CFM ( m³hr )

5500 ( 9311.55 )

4950 ( 8410.1 )

4400 ( 7475.64 )
