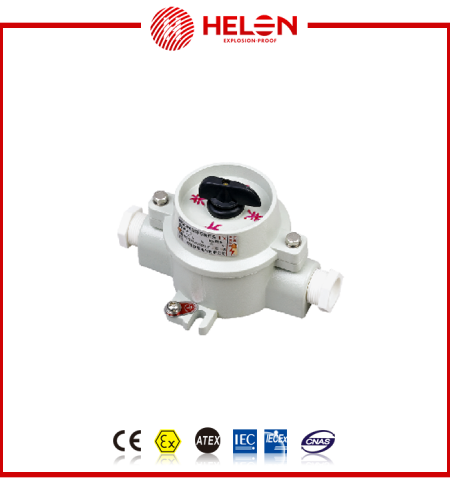

BZM-10 Series explosion-proof illumination switch(ⅡB, tD)
Gambar Produk
BZM-10 Series explosion-proof illumination switch(ⅡB, tD)
Update Terakhir
03-04-2017
Dilihat Sebanyak
318 kali
Lokasi
Banten - Tangerang - Karawaci
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi BZM-10 Series explosion-proof illumination switch(ⅡB, tD)
Applications
1. Can be used in zone 1 and zone 2,groupⅡA,ⅡB and ⅡC explosive atmosphere and zone 20,zone 21 and zone22 flammable dust atmosphere.
2. Temperature class：T1~T6；
3. Indoor or outdoor IP65；
4. Can be used in the chemical, petroleum refining, petroleum exploitation, offshore platform, tankers, military industry and other dangerous place.
Model implication
Main technical parameters
| Type | Rated current(A) | Rated voltage(V) | Inner component | Ex-mark |
| BZM-10 | 10 | 220/230 | Explosive-proof switch | Ex d eⅡB T6 Gb |
| Ex tD A21 IP65 T80℃ |
| Pole No. | Degree of protection | Erosion-proof class | Inlet thread (G) | Cable outer dia.(mm) |
| 1P+PE | IP65 | W, WF1 | 3/4 | φ10～φ14 |
Outline & installation dimensions
Main technical parameters
| Type | Rated current(A) | Rated voltage(V) | Inner component | Ex-mark |
| BZM-10 | 10 | 220/230 | Explosive-proof switch | Ex d eⅡB T6 Gb |
| Ex tD A21 IP65 T80℃ |
| Pole No. | Degree of protection | Erosion-proof class | Inlet thread (G) | Cable outer dia.(mm) |
| 1P+PE | IP65 | W, WF1 | 3/4 | φ10～φ14 |
Outline & installation dimensions
