OWON SDS8202 SmartDS Digital Oscilloscope (200MHz)
Perhatian!
Spesifikasi OWON SDS8202 SmartDS Digital Oscilloscope (200MHz)

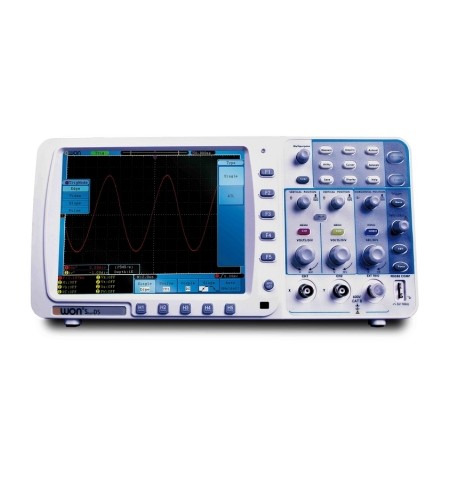

OWON SDS8202 SmartDS Digital Oscilloscope (200MHz)
Main Features
- Bandwidth : 200MHz
- Sample rate : 2GS/s
- 10M record length for each channel
- Multi-function : auto-scale, Pass / Fail, and current-measuring
- LAN remote control
- Newly supported SCPI
- Smart design with easy portability
- Large 8 inch 800 x 600 pixels display
- Optional battery available
Application
- Electronic circuit debugging
- Circuit testing
- Design and manufacture
- Education and training
- Automobile maintenance and testing
Specifications
| Model |
SDS8202 |
|
| Bandwidth |
200MHz |
|
| Sample Rate |
2GS/s |
|
| Horizontal Scale (s/div) |
1ns/div～100s/div, step by1~2~5 |
|
| Rise Time |
≤1.7ns |
|
| Display |
8”color LCD, 800 x 600 pixels, 65535 colors |
|
| Channel |
2 + 1 (external) |
|
| Record Length |
Max 10M |
|
| Input Coupling |
DC, AC, and GND |
|
| Input Impedance |
1MΩ ± 2%, in parallel with 10pF ± 5pF |
|
| Channel Isolation |
50MHz : 100 : 1, 10MHz : 40 : 1 |
|
| Max Input Voltage |
400V (PK – PK) (DC + AC, PK – PK) |
|
| DC Gain Accuracy |
±3% |
|
| DC Accuracy |
average≥16 : ±(3% reading + 0.05 div) for △V |
|
| Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
|
| LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
|
| Sampling Rate / Relay Time Accuracy |
±100ppm |
|
| Interpolation |
sin (x) / x |
|
| Interval (△T) Accuracy (full bandwidth) |
Single：±(1 interval time + 100ppm × reading + 0.6ns); Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
|
| Vertical Resolution (A/D) |
8 bits resolution (2 channels simultaneously) |
|
| Vertical Sensitivity |
2mV/div~10V/div |
|
| Trigger Type |
Edge, Pulse, Video, Slope, Alternate |
|
| Trigger Mode |
Auto, Normal, Single |
|
| Trigger Level |
±6 divisions from screen center |
|
| Acquisition modes |
Sample, Peak Detect, and Average |
|
| Line / Field Frequency (video) |
NTSC, PAL and SECAM standard |
|
| Cursor Measurement |
△V, and △T between cursors |
|
| Automatic Measurement |
Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
|
| Waveform Math |
＋, －, ×, ÷, FFT |
|
| Waveform Storage |
15 waveforms |
|
| Lissajous Figure | Bandwidth |
full bandwidth |
| Phase Difference |
±3 degrees |
|
| Communication Interface |
USB, USB flash disk storage, Pass / Fail, LAN, VGA (optional), or COM (optional) |
|
| Cymometer |
available |
|
| Power Supply |
100V – 240V AC, 50/60Hz, CAT Ⅱ |
|
| Power Consumption |
< 24W |
|
| Fuse |
2A, T class, 250V |
|
| Battery (optional) |
7.4V, 8000mA |
|
| Dimension (W × H × D) |
340 × 155 × 70 (mm) |
|
| Weight (without package) |
1.80 kg |
|
The accessories subject to final delivery.
- Power Cord
- CD Rom
- Manual
- USB Cable
- Probe
- Probe Adjust
