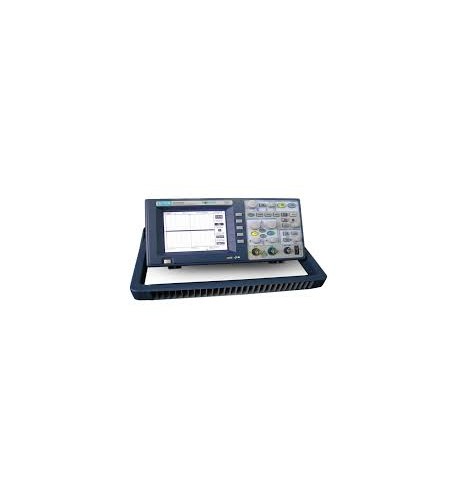

Gambar Produk
ATTEN ADS-2102SA Digital Oscilloscope
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
31 kali
Update Terakhir
13-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi ATTEN ADS-2102SA Digital Oscilloscope
ATTEN ADS-2102SA Digital Oscilloscope
Description
ADS2000 Series oscilloscope have the excellent performance, strong function and high quality product with a good price. Real time sampling can attain 1GSa/s which totally satisfy the market requirement of testing the high speed capture rate, complicated signal. It support USB storage device, and the user can update the software through USB disc. It support PicBridge directly print
Features
- 1GS/s real times sampling and 50GSa/s equivalent sampling.
- USB Host/Device.
- Support Easy Scope 2.0 software system
- USB disc storage
- 20 groups waveforms and 20 groups
- Setup Save/Recall function
- Support manifold Languages online support.
- Digital filter
- Waveform record and Pass/Fail function
- Dual channel- each channel bandwidth 25MHz
- Single color LCD display(S/SA)
Specifications
| Band width | 100MHz |
| Channels | 2 |
| Rise time | <3.5ns |
| Vertical Sensitivity | 2mV – 5V/div(1-2-5 sequence) |
| Vertical Resolution | 8 bit |
| Equivalent Sampling Rate | The highest sampling rate of each channel is 50GSa/s |
| Memory Depth | Each channel: at least 4k -1M / CH |
| Waveform capture rate | The highest capture rate exceed 1000times/sec |
| Save/Recall | Provide two groups ref waveforms, twenty groups ordinary waveforms and twenty groups setup save/recall function |
| Display modes | MAIN, WINDOW, WINDOW ZOOM, ROLL, X-Y |
| Trigger Types | Edge|Pulse Width|Video |
| Trigger Modes | Auto|normal|signal |
| Math operation | +, -, * , /, Invert FFT: window:Hanning, Hamming, Blackman, Rectangular Sampling points:1024points |
| Auto time Measure types |
Vpp; Vmax; Vmin; Vamp; Vhi; Vlo; Vavg; Mean; Vrms; Cycle Rms; ROVShoot; FOVShoot; RPREShoot; FPREShoot; Freq: Period; Rise time; Fall Time ; +Width; —Width; Positive Duty Cycle; Negative Duty Cycle; Burst Width; Phase; FRR; FRF; FFR; FFF; LRR; LRF; LFR; LFF |
| Sample Types | Real time; Equivalent time |
| Averages | 4, 16, 32, 64, 128, 256 |
| Display language | Manifold languages |
| XY Mode | Phase Error: ±3 degrees Support the sampling rate:5KSa/s; 200MSa/s (in a 1-2-5 sequence) |
| Input voltage | 100-240 VAC, 47Hz-440Hz; 50VA Max |
| Size and Weight | 300mm x 150mm x 290mm; about 4.6kg |
| Accessories | (1:1;10:1)probe x2; USB Host; USB Device; EasyScope computer software system; cable; manual |
| Options | GPIB communication Module; UART module; Pass/Fail Interface Module |
