Spesifikasi OWON VDS3102 PC Oscilloscope

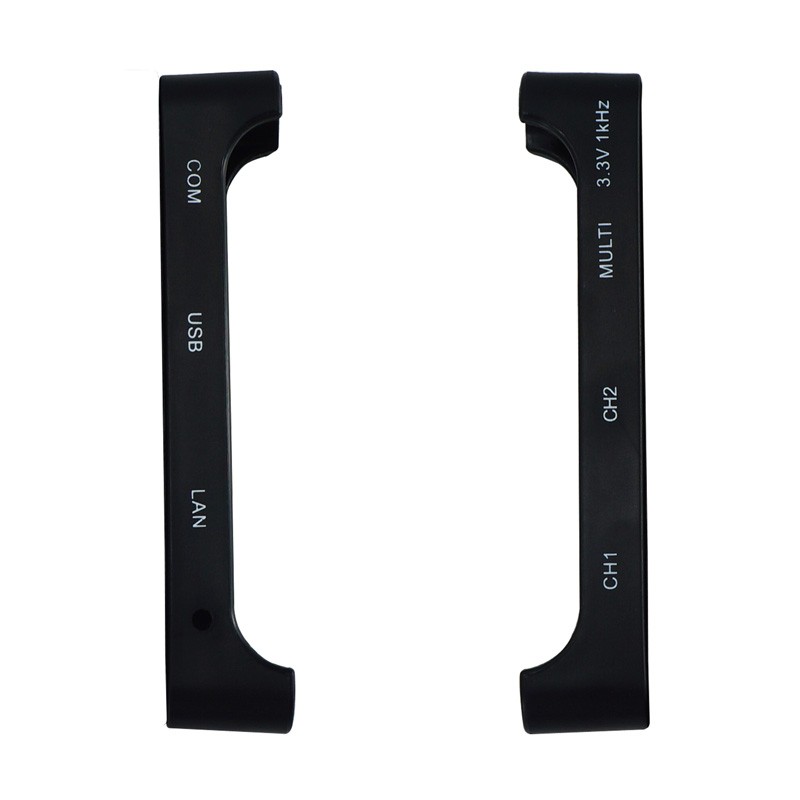

OWON VDS3102 PC Oscilloscope
Main Features
- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed on the same screen
- Multi-trigger option : edge, video, slope, pulse, and alternate
- USB isolation – less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability
Application
- Design and debug
- Circuit function test
- Education and training
Specification
| Model | VDS1022l | VDS1022 | VDS2062 | VDS2064 | VDS3102 | VDS3104 | |
| Bandwidth | 25MHz | 60MHz | 100MHz | ||||
| Channel | 2+1 (multi) | 4+1 (multi) | 2+1 (multi) | 4+1 (multi) | |||
| Sample Rate | 100MS/s | 500MSa/s | 1Gsa/s | ||||
| Horizontal Scale (s/div) | 5ns/div～100s/div, step by 1~2~5 | 2ns/div~100s/div, step by 1~2~5 | |||||
| Rise Time | ≤14ns | ≤5.8 ns | ≤3.5 ns | ||||
| Record Length | 5K | 10M | 5M | 10M | 5M | ||
| Input Coupling | DC AC GND | ||||||
| Input Impedance | 1MΩ±2%，in parallel with10pF±5pF | ||||||
| Channels Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | ||||||
| Max Input Voltage | 400V (PK – PK) (DC+AC, PK – PK) | 40V (PK – PK) (DC+AC, PK – PK) | |||||
| DC Gain Accuracy | ±3% | ||||||
| DC Accuracy | Average≥16: ±(3% reading + 0.05div) for △T | ||||||
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X | ||||||
| LF Respond (AC, -3dB) | ≥10Hz (at input, AC coupling, -3dB) | ||||||
| Sampling Rate / Relay Time Accuracy | 150ps | ||||||
| Interpolation | sin(x) / x | ||||||
| Interval (△T) Accuracy (full bandwidth) | Single: ± (1 interval time + 100ppm × reading + 0.6ns),
Average >16: ±(1 interval time + 100ppm × reading + 0.4ns) |
||||||
| Vertical Resolution (A/D) | 8 bits resolution (2 channels simultaneously) | ||||||
| Vertical Sensitivity | 5mV/div ~ 5V/div | ||||||
| Trigger Type | Edge, Pulse, Video, Slope, Alternate | ||||||
| Trigger Mode | Auto, Normal, Single | ||||||
| Trigger Level | ±5 divisions from screen center | ||||||
| Acquisition Mode | Sample, Peak Detect, and Average | ||||||
| Line / Field Frequency (video) | NTSC, PAL, and SECAM standard | ||||||
| Cursor Measurement | △V, and △T between cursors | ||||||
| Automatic Measurement | Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,
Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
||||||
| Waveform Math | ＋, －, ×, ÷, FFT | ||||||
| Lissajou’s Figure | Bandwidth | full bandwidth | |||||
| Phase Difference | ±3 degrees | ||||||
| Communication Interface | USB 2.0 | USB 2.0, LAN (optional) | |||||
| Multi-function Interface | Signal Type | synchronized input / output, Pass / Fail , external trigger input | |||||
| Level Standard | TTL | ||||||
| Power Supply | 5.0V/1A | ||||||
| Power Consumption | ≤1.5W | ≤5W | |||||
| Dimensions (W × H × D) | 170 × 120 × 18 (mm) | 190 × 120 × 18 (mm) | |||||
| Weight (without package) | About 0.26 kg | About 0.30 kg | |||||

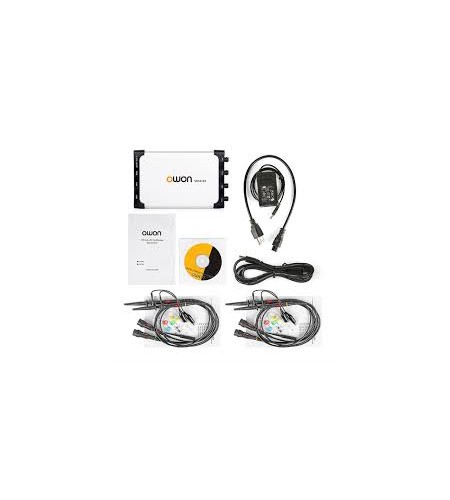

Accessories
The accessories subject to final delivery.

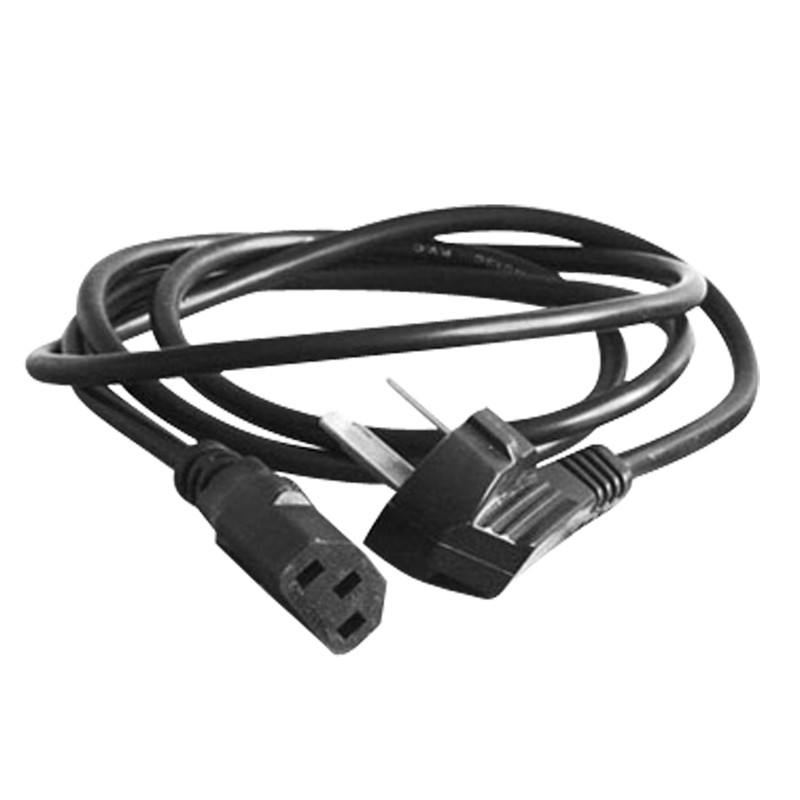

Power Cord
CD ROM
Manual

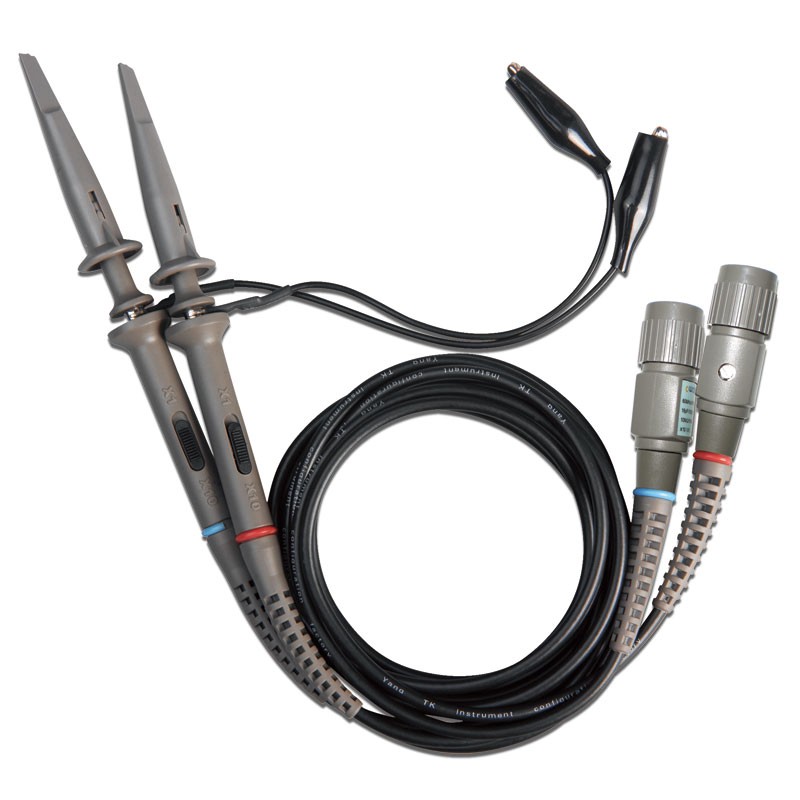

Probe

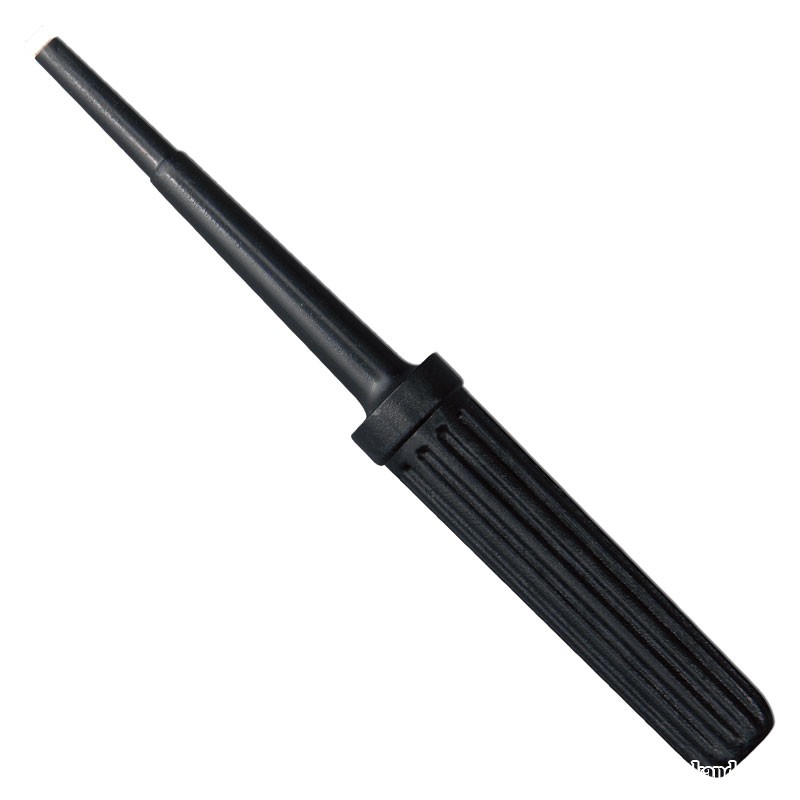

Probe Adjust

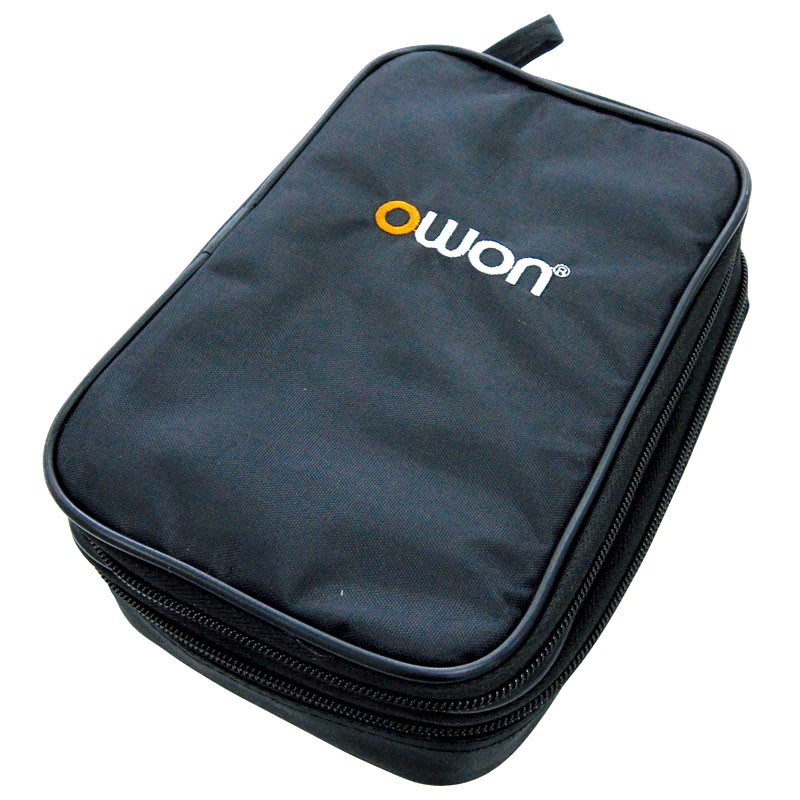

Soft Bag (optional)

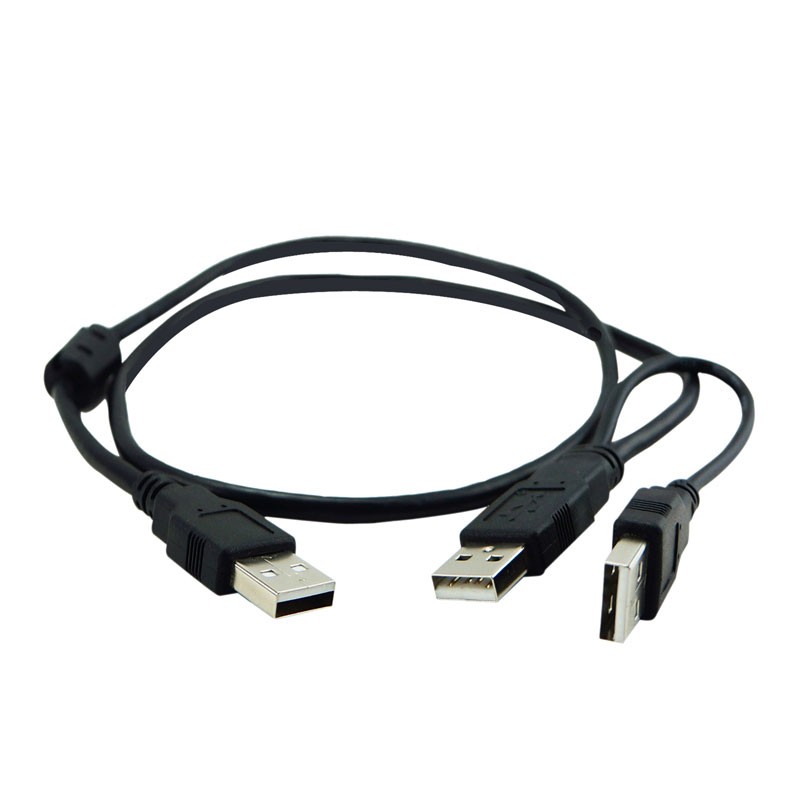

USB

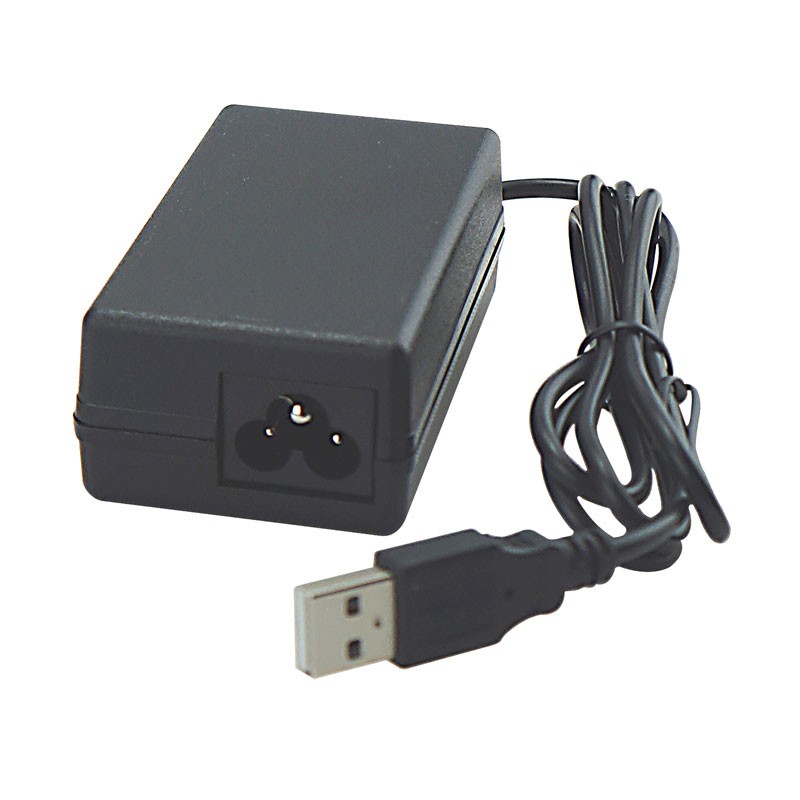

Adapter
Silicon Gel Case
