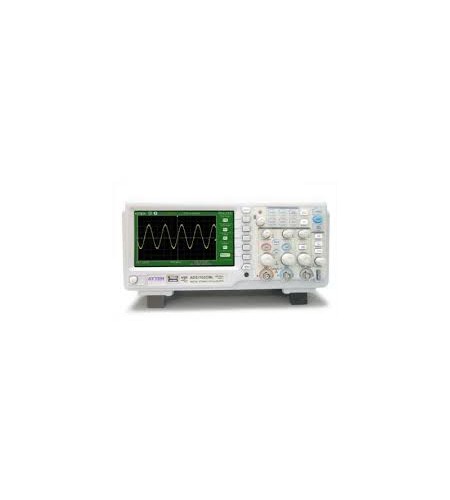

ATTEN ADS-1022C+ Digital Oscilloscope
Gambar Produk
ATTEN ADS-1022C+ Digital Oscilloscope
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
85 kali
Update Terakhir
13-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi ATTEN ADS-1022C+ Digital Oscilloscope
ATTEN ADS-1022C+ Digital Oscilloscope
Features
- 2 channels Bandwidth – 25 MHz
- Compact design saves space and allows a comfortable outdoor work.
- 5.7” Color LCD screen (320×234) Clear and stable waveform display.
- Sampling rate – 500 MS/s
- Equivalent sampling rate – 50 GS/s
- Internal memory – 32K
- Advanced start functions: frontal, video, pulse length, pulse delay
- Built-in USB-host, USB-slot for PC connection
- Digital filter and recorder functions.
- “Good/bad” mode
- 32 automatic measurements
- Pointer measurement modes: manual, tracking and automatic
- 5 mathematic functions: adding, subtraction, multiplying, division, FFT if memory length = 1K, digital filters (HF, LF, linear, elimination)
- Frame waveform registering mode (up to 2500 frames, recording and replaying)
Technical Specifications
| Model | ADS1022C |
| Channels: | 2 channels |
| Bandwidth | 25 MHz |
| Sampling rate | 500 MS/s |
| Equivalent sampling rate | 50 GS/s |
| Memory | 32K points |
| Building-up time | <14ns |
| Input impedance | 1MOm 13pF |
| Horizontal sweep time | 25 ns/dgt -50 ns/dgt |
| Display | 5.7” Color LCD screen (320×234) |
| Vertical sensitivity | 2 mV/dgt – 5 V/dgt (1-2-5 Sequence) |
| Vertical resolution | 8 bit |
| A1 and A2 input modes | DC, AC, ground |
| Max. input voltage | 400 V( DC + AC, (1MOm input impedance 10X), 5 V(50Om input impedance, BNC ) |
| Launch modes | frontal, video, pulse length, pulse delay |
| Sweep launch modes | Auto, normal, singular |
| Sync sources |
CH1, CH2, Ext, Ext/5, AC Line |
| Store/Recall | Up to 20 waveforms and up to 20 control settings profiles High capacity devises can be connected to USB-slot on the osciloscope front panel. |
| Automatic measurements | Vpp, Vamp, Vmax, Vmin, Vup, Vdn, Vavg, Vrms, Negative peak, Positive peak, frequency, period, building-up time, fall time, positive legth, negative length, positive load coefficient, negative load coefficient, delay |
| Pointer measurements | Modes manual, tracking and automatic |
| Mathematic functions | Adding, subtracting, multiplying, dividing, FFT |
| FFT | Windows: Hanning, Hamming, Blackman, Square |
| XY modes | Phase error ±3 |
| Interface themes | Clssic, modern, traditional, minimal |
| Languages | Simplified Chinese, Traditional Chinese, English, Arab, French, German, Russian, Spanish, Portuguese, Japanese, Korean |
| Power supply | 100-240V, 40-440Hz CAT II. 50W max |
| Measurements | 305mmx154mmx133m |
| Weight | 2.3kg |
| USB-host | External data storage support |
| USB | Direct PictBridge printing support; PC control |
Package Contents
- 2 probes 10:1
- EasyScope computer software system
- Power cord
- USB-cable
- User guide
