Spesifikasi OWON Wave Rambler – Pen-type PC Oscilloscope
OWON Wave Rambler – Pen-type PC Oscilloscope
Product Series : RDS Series
Main Features
- 25MHz bandwidth
- 100MS/s sample rate
- 5K record length
- FFT function
- Human engineering design
- Multi- action mode via creative trackball
- Multi- trigger option : edge, slope, and pulse
- 5mV micro signal supported
- USB bus powering, and optional USB isolated function
- Easy portability, pocket accommodated
Application
- Design and Debug
- Circuit Function Test
- Education and Training
Overview
- Model No. 1021
- Bandwiidth : 25MHz
- Sample Rate : 100MS/s
- Record Length : 5K
- Channel : 1
Specification :
| Model | RDS1021 |
| Bandwidth | 25MHz |
| Sample Rate | 100Msa/s |
| Horizontal Scale (s/div) | 5ns/div – 100s/div, step by 1- 2 – 5 |
| Rise Time | ≤14ns |
| Record Length | 5K |
| Input Coupling | DC, AC , and GND |
| Input Impedance | 10MΩ±2% (X 10), 1MΩ±2% (X1) |
| Input Capacitance | 20pF±5pF |
| Max Input Voltage | 50V ( PK – PK) (DC + AC, PK – PK) |
| DC Gain Accuracy | ±3% |
| DC Accuracy (average) | average≥16 : ±(3% reading + 0.05 div) for △V |
| Analog Bandwidth | 25MHz |
| Probe Attenuation Factor | 1X, 10X |
| LF Respond (AC, -3dB) | ≥10Hz |
| Interpolation | Sin(x)/x |
| Displacement | ±10 divisions |
| Interval (△T) Accuracy
(full bandwidth) |
Single : ±(1 inter val time + 100ppm × reading + 0.6ns),
Average>16 : ±(1 inter val time + 100ppm × reading + 0.4ns) |
| Vertical Resolution (A/D) | 8 bits |
| Vertical Sensitivity | 5mV/div – 5V/div |
| Trigger Type | Edge, Pulse, Slope |
| Trigger Mode | Auto, Normal, Single |
| Trigger Level | ±5 divisions from screen center |
| Acquisition Mode | Sample, Peak Detect and Average |
| Cursor Measurement | △ V and △T between cursors |
| Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot,
Rise Time, Fall Time, +Width, -Width, +Duty, -Duty |
| Waveform Math | FFT |
| Communication Interface | USB2.0 |
| Dimension (W×H×D) | 150× 20× 18(mm) |
| Weight (without package) | 0.27kg |
Accessories :
The accessories subject to final delivery.
Manual
USB

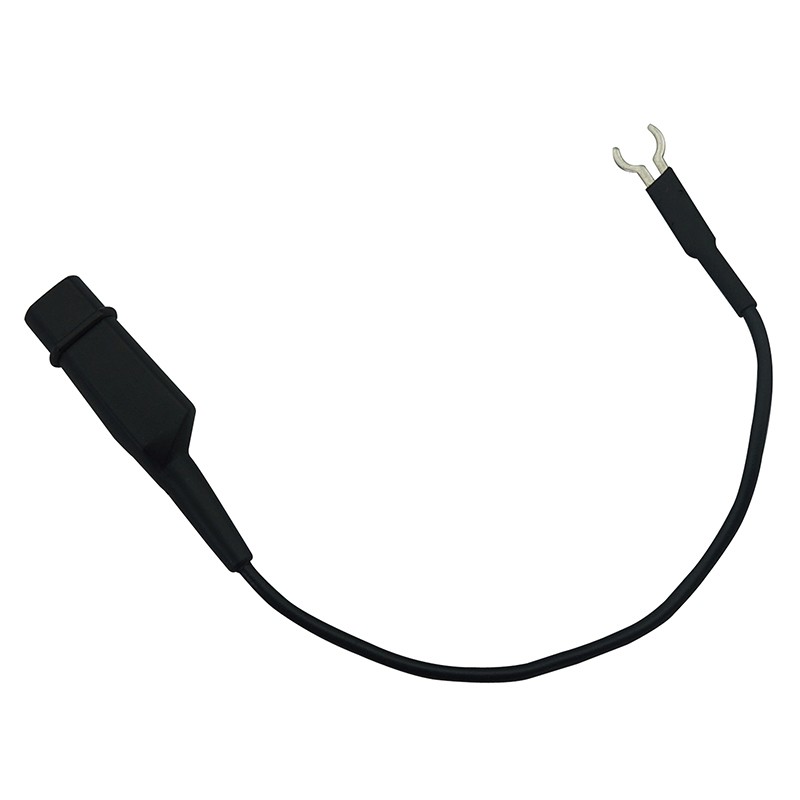

Grounding Clamp

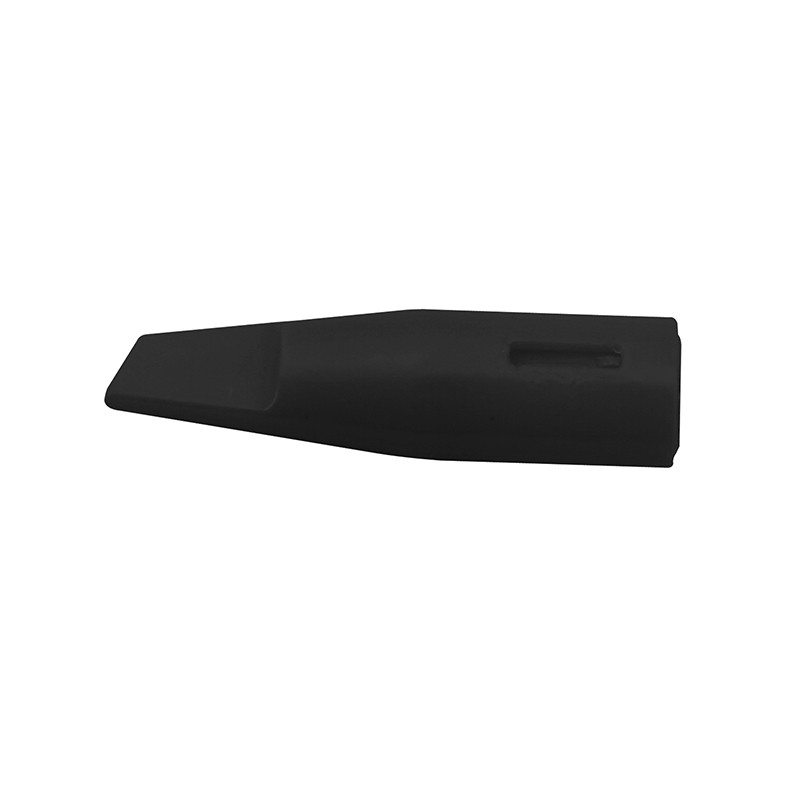

Protective Cover
Square CD ROM
