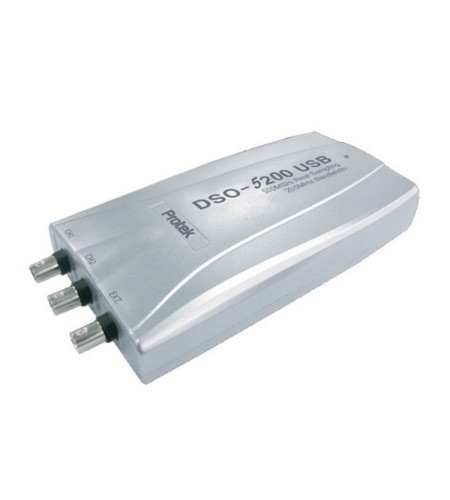

Protek DSO-5200A PC Digital Storage Oscilloscope
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
37 kali
Update Terakhir
13-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Protek DSO-5200A PC Digital Storage Oscilloscope
Protek DSO-5200A PC Digital Storage Oscilloscope
- High Performance with USB interface
- Suitable and convenient for most usages
Specifications
| Maximum Sampling Rate | Realtime Sampling | 100MS/s |
| Equivalent Sampling | 25GS/s | |
| Bandwidth | 200MHz(-3dB) | |
| Single Shot Bandwidth | 100MHz | |
| Buffer Size | 10K ~ 512K Samples | |
| Channels | 2 Channels | |
|
Voltage Range |
10mV ~ 10V/div @ 1 Probe | |
| 100mV ~ 100V/div @ 10 Probe | ||
| 1V ~ 1000V/div @ 100 Probe | ||
| 10V ~ 10000V/div @ 1000 Probe | ||
| Accuracy | ±3% | |
| Timebase Range | 2ns/div ~ 1h/div (1-2-4 Sequence) | |
| Offset Level | +/-4 Divisions | |
| Coupling | AC, DC, GND | |
| Impedance | 1M Ohm | |
| Input Protection | 35Vpk(DC + Peak AC; Without External Attenuation) | |
| Roll Mode | 1s/div ~ 1h/div | |
| Range | 10 Divisions | |
| Pre/Post Production | 0% ~ 100% | |
| Trigger TYPE | Edge Trigger: Rising Edge, Falling Edge | |
| Trigger Mode | Auto, Normal, and Single | |
| Autoset | Yes | |
| Settability | 0.03 div Increments | |
| Trigger Level | +/-4 Division | |
| Measurements | Vp-p, Vmax, Vmin, Vmeans, Vrms, Vamp, Vhigh, Vlow, Positive Overshoot, Negative Overshoot, Cycle Mean, Cycle RMS, Period, Frequency, Positive Pulse Width, Negative Pulse Width, Rise Time (10% ~ 90%) Fall Time (10% ~ 90%), Positive Duty Cycle, Negative Duty Cycle | |
| Cursor | Time/Frequency Difference, Voltage Difference | |
| Math | Addition, Subtraction, Multiplication, Division | |
| FFT | Rectangular, Hanning, Hamming, Blackman Window | |
| Interface | Universal Serial Bus (USB) | |
| Power | No External Source Required | |
| Bus-Powered From USB1.7W) | ||
| Calibration Signal Output | 2V, 1kHz, Square Wave | |
| Trace Display | Point/Line | |
| Vertical Position Variable | Yes | |
| Grid | On/Off | |
|
File Management |
Image save: .BMP, .JPG | |
| Data Save: .DSO | ||
| OLE (Object Linking and Embedding) Automation: Data Generation for Microsoft excel | ||
| Setting Save/Load | ||
| Print In Color/Mono | ||
