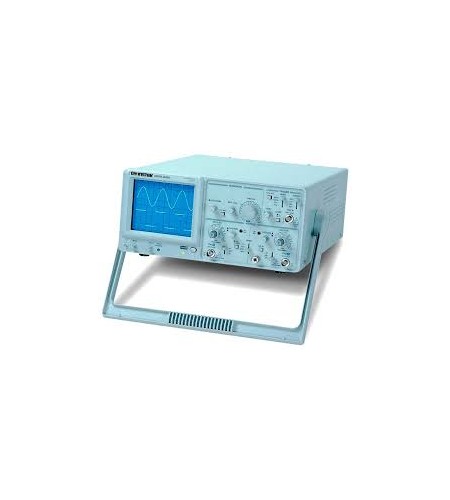

GW Instek GOS-620FG Analog Oscilloscope
Perhatian!
Spesifikasi GW Instek GOS-620FG Analog Oscilloscope
GW Instek GOS-620FG Analog Oscilloscope
Features
- Built-In 1 MHz Function Generator
- 20MHz Bandwidth, Dual Channel
- High Sensitivity 1mV/div
- ALT Triggering Function
- TV Synchronization
- CH1 Output
- Z-Axis Input
Description
The GOS-620FG is a general purpose analog oscilloscope with 20MHz bandwidth. Aside from the basic functions such as 1mV/div~5V vertical sensitivity, 0.2uS/div~0.5S/div horizontal sweep time, and practical Auto/Norm/TV-V/TV-H trigger modes, the GOS-620FG offers extra Function Generating which is required by most class experiments and production lines. The GOS-620FG is also capable of generating Sine/Square/Triangle waveforms in 0.1Hz~1MHz (7 range) frequency range with sine wave distortion as low as 2%.
Specification
|
GOS-620FG |
|
|
Digital / Analog |
Analog |
|
Display |
6″ CRT |
|
Bandwidth (MHz) |
20 |
|
Number of Channel |
2 |
|
Vertical Sensitivity |
1mV ~ 5V |
|
Time Base Range |
0.2μs ~ 0.5s |
|
Input Impedance Selection |
1MΩ |
|
Auto Measurement |
– |
|
Waveform Memory |
– |
|
Panel Setup Memory |
– |
|
Auto-Set |
– |
|
Auto/Normal Trigger |
V |
|
ALT Trigger |
V |
|
TV Trigger |
V |
|
Cursor Readout |
– |
|
XY Mode |
V |
|
Zoom |
– |
|
Counter Function |
– |
|
Function Generator |
V |
|
Interface |
– |
|
Buzzer Alarm |
– |
|
Battery Power Operation |
– |
|
LED Indicators |
– |
|
Z-Axis Input |
V |
|
Power Source |
AC 115/230V ±15% |
Accessories
User manual x 1
Power cord x 1
GTP-020A-4: 20MHz (10:1/1:1) Switchable passive probe (one per channel)
Optional Accessories
GTL-110 Test lead, BNC-BNC heads
GTC-001 Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002 Instrument cart, 330(W) x 430(D)mm (120V input socket)
