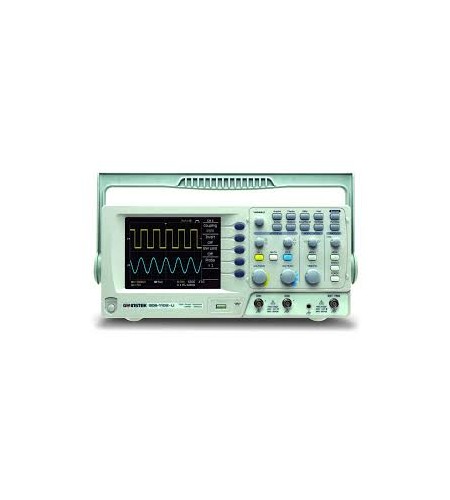

GW Instek GDS-1072-U Digital Oscilloscope
Perhatian!
Spesifikasi GW Instek GDS-1072-U Digital Oscilloscope
GW Instek GDS-1072-U Digital Oscilloscope
Features :
- 70MHz Bandwidth with 2 Input Channels
- 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
- 4k Memory Length per Channel
- Peak Detect as Fast as 10ns
- Save/Recall of 15 Front Panel Settings & Waveforms
- 5.7″ TFT Color Display
- 19 Auto Measurements
- Arithmetic Operators – Add, Subtract, FFT
- USB Port for PC Connection
- Data Logger
- Limited Lifetime Warranty
Description
The GDS-1000-U Series offers 100MHz, 70MHz and 50MHz digital storage oscilloscopes with 5.7″ color TFT LCD displays. With dual sampling modes, a 4,000 point record length, a real-time sampling rate of 250MSa/s and an ET sampling rate of 25GSa/s, the GDS-1000-U Series DSO provides an excellent balance of performance between memory length and sampling speed. Other major features include user-friendly menu tree operations, compact size, ergonomic design, USB host for PC connectivity and USB device port support. The GDS-1000-U Series is designed to meet today’s most demanding engineering requirements and budgets.
Specification
|
GDS-1102-U |
GDS-1072-U |
GDS-1052-U |
|
|
Waveform Technology |
– |
||
|
Display |
5.7″ TFT LCD Color |
||
|
Bandwidth (MHz) |
100 |
70 |
50 |
|
Number of Channel |
2 |
2 |
2 |
|
Memory Depth |
4k Points |
||
|
Sample Rate |
250MSa/s (RTS) |
||
|
Vertical Resolution |
8-bit |
||
|
Vertical Sensitivity |
2mV/div ~ 10V/div |
||
|
Time Base Range |
1ns/div ~ 50s/div |
||
|
Input Impedance Selection |
1MΩ |
||
|
Auto Measurement |
19 |
||
|
Waveform Memory |
15 |
||
|
Panel Setup Memory |
15 |
||
|
Auto-Set |
V |
||
|
Auto/Normal Trigger |
V |
||
|
ALT Trigger |
– |
||
|
TV Trigger |
V |
||
|
Cursor Readout |
V |
||
|
XY Mode |
V |
||
|
Zoom |
V |
||
|
Go/NoGo |
V |
||
|
Zoom FFT |
– |
||
|
Counter Function |
V |
||
|
Function Generator |
– |
||
|
Logic Analyzer |
– |
||
|
Data Logger |
V |
||
|
Digital Storage |
V |
||
|
Go/NoGo Output |
– |
||
|
Interface |
USB Host/Device |
||
|
SVGA Output |
– |
||
|
Buzzer Alarm |
– |
||
|
PictBridge Compatible |
– |
||
|
Battery Power Operation |
– |
||
|
LED Indicators |
– |
||
|
Z-Axis Input |
– |
||
|
LabView Driver |
V |
||
|
Power Source |
AC 100V ~ 240V |
||
Accessories
User manual x 1, Power Cord x 1
Probe-GTP-070A-4 : 70MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-1052-U (one per channel)
Probe-GTP-070A-4 : 70MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-1072-U (one per channel)
Probe-GTP-100A-4 : 100MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GDS-1102-U (one per channel)
Optional Accessories
GSC-006 Soft carrying case
GTL-110 Test lead, BNC-BNC heads
GTL-246 USB 2.0 A-B type cable
