OWON MSO8102T Logic Analyzer + Digital Oscilloscope
Perhatian!
Spesifikasi OWON MSO8102T Logic Analyzer + Digital Oscilloscope

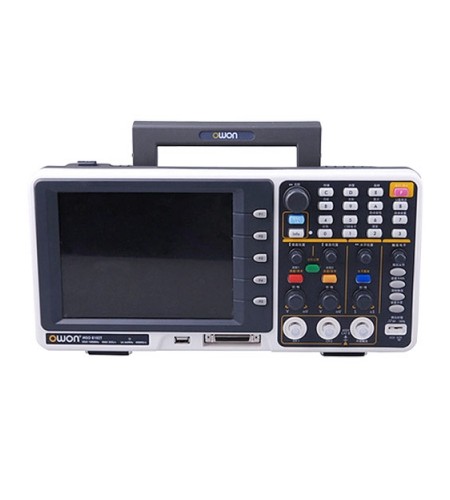

OWON MSO8102T Logic Analyzer + Digital Oscilloscope
Main Features
- 2 in 1 (DSO + LA)
- 8 inch color LCD
- USB data transmission supported
- 20 group automatic measurement options
Digital Storage Oscilloscope
- Bandwidth : 100MHz
- Sample rate : 2GS/s
- Auto-scale function
- FFT
Logic Analyzer
- Bandwidth : 100MHz
- Sample rate : 20S/s – 2GS/s
- 16 digital channels
Application
- Design and debug
- Circuit function test
- Identified signals logic information
- Education and training
- Mixed signal circuit test
Specifications
|
Digital Storage Oscilloscope Performance Specifications |
||
| Model |
MSO8102T |
|
| Bandwidth |
100MHz |
|
| Sample Rate (real time) |
2GS/s |
|
| Rise Time |
≤3.5ns |
|
| Display |
8.0” color LCD , TFT screen, 640 × 480 pixels |
|
| Channel |
dual + external trigger |
|
| Horizontal Scale (s/div) |
2ns/div – 100s/div, step by 1 – 2 – 5 |
|
| DC Accuracy (average) |
average>16 : ±(3% reading + 0.05div) for △V |
|
| Vertical Sensitivity |
2mV/div – 10V/div |
|
| DC Gain Accuracy |
±3% |
|
| Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
|
| Interpolation |
sin (x) / x |
|
| Max Input Voltage |
400V (DC + AC, PK – PK ) |
|
| Probe Attenuation Factor |
1X，10X，100X，1000X |
|
| Trigger Mode |
Edge, Video, Alternate, Pulse, Slope |
|
| Acquisition Mode |
Normal, Peak Detect, and Average |
|
| Record Length |
max 2M points |
|
| Waveform Storage |
4 waveforms |
|
| Automatic Measurement |
Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
|
| Waveform Math |
＋, －, ×, ÷, FFT |
|
| Power Supply |
100 – 240V AC, 50Hz / 60Hz, CAT II |
|
| Lissajou’s Figure | Bandwidth |
100MHz |
| Phase Difference |
±3 degrees |
|
| Communication Interface |
USB2.0, USB host, and RS232 / VGA (optional) |
|
| Fuse |
1A, T class, 250V |
|
| Dimensions (W × H × D) |
370 × 180 × 120 (mm) |
|
| Weight (without package) |
2.20 kg |
|
|
Logic Analyzer Performance Specifications |
||
| Sample Rate (real time) |
20S/s – 2GS/s |
|
| Bandwidth |
100MHz |
|
| Channel |
16 |
|
| Record Length |
Max 4M each channel |
|
| Input Impedance |
660KΩ ± 5%, in parallel with 15 ± 5pF |
|
| Trigger Mode |
Edge, Bus, State, Data Alignment, Data Width, Distributed Queue |
|
| Trigger Position Setting |
Pre-trigger, Mid-trigger, and Re-trigger |
|
| Threshold Voltage |
±6V (4 settings) |
|
| Input Signal Range |
±30V |
|
| Data Search |
available |
|
| Data System |
binary, decimal, hex |
|
| Digital Filter |
0, 1, 2 optional |
|
| Setting Storage |
10 settings |
|
| USB Flash Disk Storage |
available |
|
The accessories subject to final delivery.
- Power Cord
- CD Rom
- Manual
- USB Cable
- Probe
- Probe Adjust
- Logic Analyzer Module
