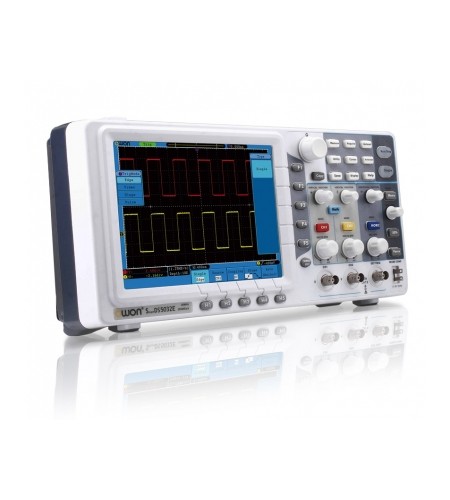

OWON SDS5032E Digital Oscilloscope

OWON SDS5032E Digital Oscilloscope

Features :

• Bandwidth : 30MHz
• Sample rate : 500MS/s
• 10K record length
• Channel 2 + 1
• Ultra-thin body
• 8 inch high def TFT display
• Pass / Fail function
• Add / Remove measure function, and user-defined measurement menu

Specifications

Bandwidth : 30MHz

Sample Rate (real time) : 500MS/s

Rise Time (at input, typical) : ≤11ns

Channel : 2 + 1 (external)

Display : 8″ color LCD, TFT display , 800 × 600 pixels, 65535 colors

Input Impedance : 1MΩ ± 2%, in parallel with 15pF±5pF

Channel Isolation : 50Hz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage : 400V (PK – PK) (DC+AC, PK – PK)

DC Gain Accuracy : ±3%

Record Length : 10K

DC Accuracy (average) : Average≥16：±(3% reading + 0.05 div) for △V

Probe Attenuation Factor : 1X, 10X, 100X, 1000X

LF Respond (AC, -3dB) : ≥10Hz (at input, AC coupling, -3dB)

Sample Rate/Relay Time Accuracy : ±100ppm

Input Coupling : DC, AC , and GND

Vertical Resolution (A/D) : 8 bits resolution (2 Channels simultaneously)

Vertical Sensitivity : 5mV/div～10V/div (at input)

Trigger Type : Edge, Pulse, Video, Slope, Alternate

Trigger Mode : Auto, Normal, Single

Trigger Level : ±6 divisions from screen center

Line/Field Frequency  (video) : NTSC, PAL, and SECAM standard

Communication Interface : USB, USB flash disk storage, Pass / Fail, LAN, VGA (optional）

Cymometer : available

Power Supply : 100V – 240V AC, 50/60Hz, CAT Ⅱ

Power Consumption : ＜18W

Fuse : 2A, T class, 250V

Battery : not supported

Dimension (W×H×D) : 348 × 170 × 78 (mm)

Weight (without package) : 1.50 kg

Acccessories : Power Cord, CD ROM, manual, USB, Cable, Probe and Probe Adjust
