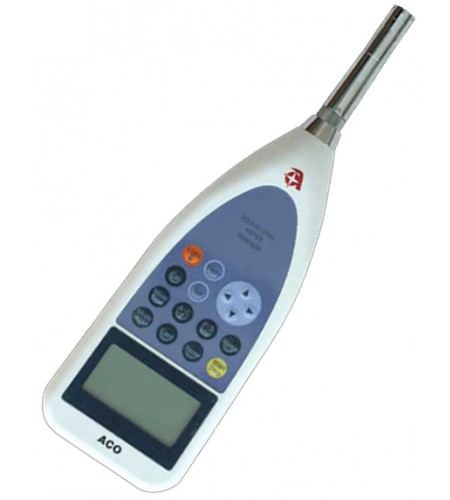

SOUND LEVEL METER AND CALIBRATOR TYPE 6236 || ALAT UKUR KEBISINGAN SUARA
Gambar Produk
SOUND LEVEL METER AND CALIBRATOR TYPE 6236 || ALAT UKUR KEBISINGAN SUARA
Update Terakhir
05-01-2024
Minimum Pembelian
1 UNIT
Dilihat Sebanyak
2.332 kali
Lokasi
Jawa Barat - Depok - Sukmajaya
Harga
Kontak Kami
Bagikan
+ Penawaran
Spesifikasi SOUND LEVEL METER AND CALIBRATOR TYPE 6236 || ALAT UKUR KEBISINGAN SUARA
SOUND LEVEL METER TYPE 2 AND CALIBRATOR
Type : 6236
Product : Aco - Japan
Fungsi : Alat ukur kebisingan suara
Spesifikasi :
Type : 6236
Product : Aco - Japan
Fungsi : Alat ukur kebisingan suara
Spesifikasi :
| A. | Sound Level Meter | ||
| Level Range | : | 20~80dB | |
| 20~90dB | |||
| 20~100dB | |||
| 20~110dB | |||
| 30~120dB | |||
| 40~130dB | |||
| 0~80dB | |||
| 0~dB function in ON | |||
| Frequency Range | : | 20Hz～20kHz | |
| 20Hz～8kHz (Low) | |||
| Linearity Range | : | 100dB | |
| Measurement | : | SPL, SPL-A, SPL-C, LAeq, LAe, LAmax, LAn, | |
| Lpeak, Lcpeak, LAtm5, LAi, LAieq | |||
| Weighting Level | : | (A) 28~130dB (0~80 dB/0 - dB function in ON) | |
| (C) 36~130dB | |||
| (Z) 40~130dB (Flat) | |||
| (C) 55~141dB (Peak) | |||
| (Z) 60~141dB (Flat) | |||
| Time Weighting | : | Fast, Slow, Impulse | |
| Freq. Weighting | : | A, C, Z (FLAT) | |
| Measurement Time | : | 1s/3s/5s/10s/1min/5min/10min/15min/ | |
| 30min/ 1h/8h/12h/24h | |||
| Display | : | Liquid crystal and Backlight(128×64 points) | |
| Date | : | year/month/day/hour：minute：second | |
| Standard | : | JIS C1509-1:2005 Class II | |
| IEC 61672-1:2002 Class II | |||
| B. | Octave Real-time Analysis | ||
| Measurement mode | : | Sound pressure level(Lp) | |
| Equivalent continuous sound pressure level(Leq) | |||
| Sound exposure level(LE) | |||
| Maximum sound pressure level(Lmax) | |||
| 1/1-octave filter | : | 16Hz,31.5Hz,63Hz,125Hz,250 Hz,500Hz, | |
| 1 kHz, 2kHZ, 4kHz,8kHz,AP,OA | |||
| 1/3-octave filter | : | 12.5Hz,16Hz,20Hz,25Hz,31.5Hz,40Hz,50Hz, | |
| 63Hz, 80Hz, 100Hz,125Hz,160Hz,200Hz, | |||
| 250Hz, 315Hz, 400Hz,500Hz,630Hz,800Hz, | |||
| 1kHz,1.25kHz,1.6kHz, 2kHz,2.5kHz,3.15kHz, | |||
| 4kHz,5kHz,6.3kHz,8kHz,10kHz,12.5kHz, | |||
| 16kHz,AP,OA | |||
| Step Level range | : | 10~80dB, 20~90dB, 30~100dB, 40~110dB, | |
| 50~120dB, 60~130dB (-10~60dB, 0~70dB, | |||
| 10~80dB/0-dB function in ON) | |||
| C. | Sound Calibrator | ||
| Range | : | 94 dB | |
| SPL tolerance | : | ±0,3 dB | |
| Nominal Frequency | : | 1000Hz | |
| Frequency Tolerance | : | ±0,1% | |
| Cover Microphone | : | Measurement Microphone 1-inch and 1/2-inch | |
| (Included 1/2-inch microphone Adapter) | |||
| D. | Complete Unit | : | Mirophone / preamp |
| : | Windscreen | ||
| : | SD card | ||
| : | Sound Calibrator | ||
| : | Octave Real-time 1/1-1/3 | ||
| : | Exlusive printer | ||
| : | RS232 interface cable | ||
| : | Roll Paper 10 pcs | ||
| : | Software | ||
| : | Certificate Calibration | ||
| : | Screw driver | ||
| : | Software |
