Viscometer DV2T Brookfield

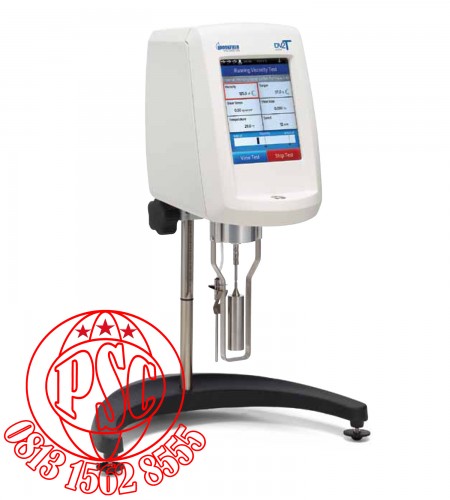

Digital Viscometer DV2T Brookfield

The New DV2T Viscometer features a 5-inch color display to guide users through test creation and data gathering for fast and easy viscosity measurements. The DV2T also offers powerful new programming capabilities and results analysis including data averaging and QC limits with alarms. User instructions with multi-step test protocols can be created using the new Program Generator Software and uploaded to the DV2T through a USB Flash Drive (both included with instrument). Test Data can be recorded directly on a local printer or sent to a PC.

The new user interface provides enhanced security with customizable user levels & password access to comply with regulatory requirements such as 21 CFR Part 11

Features And Benefits

5-inch full color, touch screen display supports multiple languages

Displayed info includes: viscosity ( cP/mP·s ), temperature ( °C/°F ), shear rate/stress, % torque, spindle/speed, step program status

Enhanced Security with customizable user access, date/time stamp file, password access, portable log-in settings

Built-In options include timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination

USB PC interface provides optional computer control and automatic data gathering capability

Download custom test programs with included PG Flash software

Front-facing bubble level for convenient viewing

Built-in temperature probe

Accuracy of ±1.0 % of range with displayed test data

Repeatability of ±0.2 %

NIST traceable viscosity standards available

Also available : DV2T Extra

Specifications

Viscocity Range

Speeds

cP ( mPa*s )

Model

Min

Max

RPM

Number of Increments

DV2TLV

1ᵻ

6M

0,1 - 200

200

DV2TRV

100 ᵻ ᵻ

40M

0,1 - 200

200

DV2THA

200 ᵻ ᵻ

80M

0,1 - 200

200

DV2THB

800 ᵻ ᵻ

320M

0,1 - 200

200

Spring Torque

Model

Spring Torque

Dyne-cm

Milli Newton-m

DV2TLV

673.7

0.0673

DV2TRV

7.187.0

0.7187

DV2THA

14.374.0

14.374

DV2THB

57.496.0

5,7496

ᵻ 1 cP achieved with UL Adapter accessory. 15 cP on LV with standard spindles

ᵻ ᵻ Minimum viscocity is achieved with optional RV/HA/HB spindle

M=1 million     cP=Centipoise     mPa*s=Millipascal*seconds
