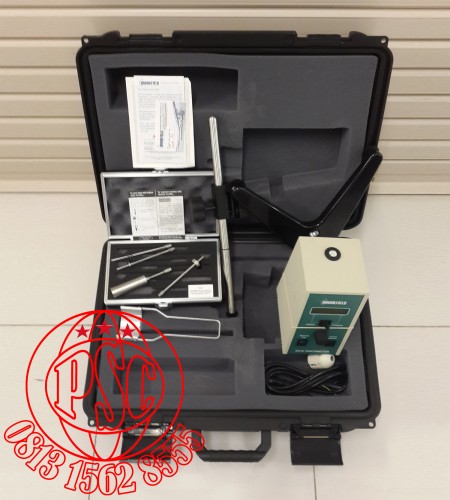

Viscometers LVDV-E Brookfield

Viscometers LVDV-E Brookfield

The DVE combines economy and ease of operation with traditional Brookfield excellence to provide reliable viscosity readings. Easy to use interface allows operators to change test parameters easily and test like a pro no time!

The digital display ensures easy and accurate readout of test results for simultaneous measurement of viscosity and torque. Quality of manufacture guarantees reliable performance and long life.

Features & Benefits

Low cost and easy to use

Direct display in :

cP or mPa·s

% Torque, Spindle, and Speed

Torque measurement accuracy : 1 % of full scale range

Repeatability : 0.2 % of full scale range

Compatible with all Brookfield accessories

NIST traceable viscosity standards available

18 speeds for greater range capability ( 0.3 to 100 rpm )

Specifications

Viscosity Range cP ( mPa•s )

Min ( 1† ), Max ( 2 M )

Speeds

0.3 - 100 RPM, Number of Increments 18

Spring Torque

Dyne-cm ( 673.7 ), Milli Newton-m ( 0.0673 )

† 1 cP achieved with UL Adaptor Accessory. 15 cP on LV with standard spindles

-

†† Minimum viscosity is achieved with optional RV/HA/HB spindle.

-

B=1 Billion M=1 million cP=Centipoise mPa-s=Millipascal-second

-
