Digital Petroleum Gauging Thermometer TP9 ThermoProbe

Digital Petroleum Gauging Thermometer TP9 ThermoProbe

Product Description

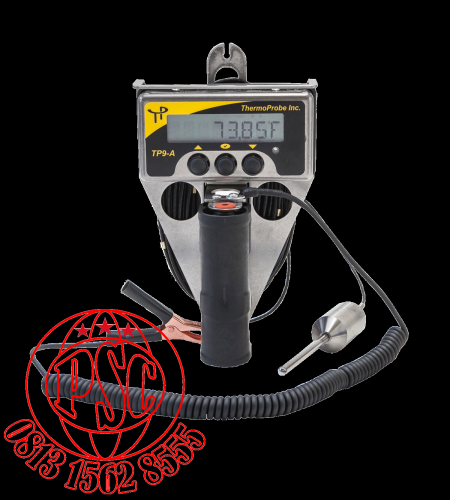

The TP9 is an intrinsically safe digital gauging thermometer designed for use in hazardous locations. With over 30 years experience manufacturing digital thermometers, ThermoProbe has designed the TP9 with reliable RTD sensors based on our previous industry-standard thermometers such as the TP7 and TP8.

The latest TP9 electronics are more accurate than previous models based on our laboratory thermometer technology. The convenient user interface provides a large 1/2” character display and buttons that can be easily used with gloves. An automatic backlight feature is included to help reading the display in low light conditions. The versatile software functions allow easy selection of Celsius or Fahrenheit units and display resolution. The arrow indicators on the display allow the user to readily establish stable readings and temperature trending. Stabilized temperature readings can be conveniently saved for later. The TP9 comes equipped with easily replaceable AA batteries, providing up to 200 hours of operation.

The TP9 rugged instrument body is constructed from stainless steel and acetal components. The TP9 ergonomic probe storage and stainless construction is well suited for gauging heavy products that are hard to clean such as asphalt. With multiple probe configurations and allowable lengths up to 50 meters ( 165 ft ), the TP9 is well suited to many tank gauging applications. The probe assembly is constructed of easy to clean materials such as non-stick cable and stainless steel.

Certifications

The TP9 certifications are recognized internationally ( IECEx ), in Europe ( ATEX ), Japan ( TIIS ) and Russia ( GOST ).

Applications

Recommended Operation per API 7 : International Safety Guide for Oil Tankers and Terminals, API 4 and other recommended procedures and standards.

Custody Transfers, Hazardous Location, Intrinsically safe, Inventory, PET, Tank, Pipeline, Barge, Ship, Railcar, Tank Truck, Viscosity, Petroleum, Portable, Digital, Thermometer, Inspector, NIST, Certified, Ex, UL, ATEX, IECEx, TIIS, GOST,Gasoline, Diesel, Asphalt, Molten Sulphur, Petrochemical, Viscous, Caustic, Acid, Chemical, Alkali, Molasses, Syrup, Distilled spirits, Aviation fuel

Specification

Maximum Dimensions

10”L x 4.25”H x 6.4” W

Weight

3 lb. 2.4 oz. ( 1429 grams )

– with 75′ standard weight probe assembly

Probe

304 Stainless Steel, Sealant, Aramid Fiber Reinforced, FEP or  PFA

Cable Jacket, Coaxial Construction

Enclosure Material

Stainless Steel

Acetal ( Delrin ) Probe Holder

Polyvinylchloride Faceplate

Stainless Steel Fasteners

Batteries

2 AA Alkaline ; Battery Life of approximately 200 hours

Battery manufacturer’s battery operating temperatature range -4 to 130 °F, -20 to 54 °C

Note : Battery may not provide adequate power if ambient temperature is extremely low or high.

Temperature

Resolution 0.01

Range : -40 to +400 °F

-40 to +204 °C

Calibrated Accuracy :

±0.2 °F from 32 to 200 °F

±0.5 °F from 200 to 400 °F

±0.1 °C from 0 to 100 °C

±0.3 °C from 100 to 200 °C

4 Point NIST Traceable Report of Test

Long-term drift not to exceed 0.05 %/year

Meets API requirements

Certification

ATEX & IECEx ( Ex ib [ia] IIB T4 )
