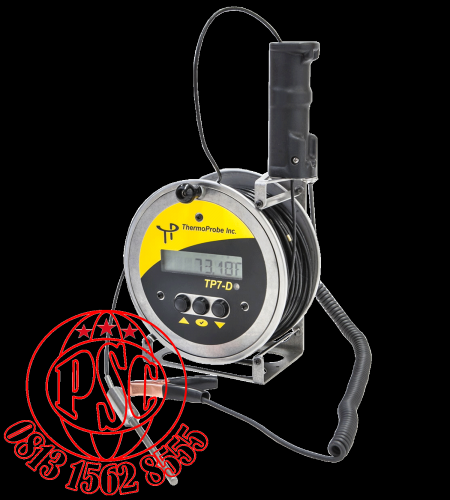

Digital Petroleum Gauging Thermometer TP7-C ThermoProbe
Perhatian!
Spesifikasi Digital Petroleum Gauging Thermometer TP7-C ThermoProbe
|
Digital Petroleum Gauging Thermometer TP7-C ThermoProbe |
|
Product Description |
|
The TP7-C is an intrinsically safe digital gauging thermometer designed for use in hazardous locations. With over 30 years experience manufacturing digital thermometers, ThermoProbe has designed the TP7-C with reliable RTD sensors based on our previous industry-standard thermometers such as the TP7 and TP8. |
|
based on our laboratory thermometer technology, the latest TP7-C electronics are more accurate than previous models. The convenient user interface provides a large 1/2” character display and buttons that can be easily used with gloves. An automatic backlight feature is included to help read the display in low light conditions. The versatile software functions allow easy selection of Celsius or Fahrenheit units and display resolution. The arrow indicators on the display allow the user to readily establish stable readings and temperature trending. Stabilized temperature readings can be conveniently saved for later. The TP7-C comes equipped with easily replaceable AA batteries, providing up to 200 hours of operation. |
|
The TP7-C rugged instrument body is constructed from aluminum and polypropylene components. The TP7-C spool-reel design allows the user to quickly deploy and retrieve the sensor probe into various products. With multiple probe configurations and allowable lengths up to 50 meters ( 165 ft ), the TP7-C is well suited to many tank gauging applications. The probe assembly is constructed of easy to clean materials such as non-stick cable and stainless steel. |
|
Certifications |
|
The TP7-C certifications are recognized internationally ( IECEx ), in Europe ( ATEX ), Japan ( TIIS ) and Russia ( GOST ) |
|
Applications |
|
|
Recommended Operation per API 7 : International Safety Guide for Oil Tankers and Terminals, API 4 and other recommended procedures and standards. |
|
|
Custody Transfers, Hazardous Location, Intrinsically safe, Inventory, PET, Tank, Pipeline, Barge, Ship, Railcar, Tank Truck, Viscosity, Petroleum, Portable, Digital, Thermometer, Inspector, NIST, Certified, Ex, UL, ATEX, IECEx, TIIS, GOST, |
|
|
Gasoline, Diesel, Asphalt, Molten Sulphur, Petrochemical, Viscous, Caustic, Acid, Chemical, Alkali, Molasses, Syrup, Distilled spirits, Aviation fuel |
|
|
Specification |
|
|
Maximum Dimensions |
13.5 x 7.25 x 4.5 in., 34.3 x 18.4 x 11.4 cm |
|
Weight |
3 lb. 12.6 oz. ( 1718 grams ) |
|
– with 75′ standard weight probe assembly |
|
|
Probe |
304 Stainless Steel, Sealant, Aramid Fiber Reinforced, FEP or PFA |
|
Cable Jacket, Coaxial Construction |
|
|
Enclosure Material |
Polypropylene Blend, Stainless Steel and Aluminum. |
|
Batteries |
2 AA Alkaline; Battery Life of approximately |
|
200 hours |
|
|
Battery manufacturer’s battery operating temperatature range -4 to 130 °F, -20 to 54 °C |
|
|
Note : Battery may not provide adequate power if ambient temperature is extremely low or high. |
|
|
Temperature |
Resolution 0.01 |
|
Range : -40 to +400 °F |
|
|
-40 to +204 °C |
|
|
Calibrated Accuracy : |
|
|
±0.2 °F from 32 to 200 °F |
|
|
±0.5 °F from 200 to 400°F |
|
|
±0.1 °C from 0 to 100 °C |
|
|
±0.3 °C from 100 to 200 °C |
|
|
4 Point NIST Traceable Report of Test |
|
|
Long-term drift not to exceed 0.05 %/year |
|
|
Meets API requirements |
|
|
Certification |
ATEX & IECEx ( Ex ib [ia] IIB T4 ) |
