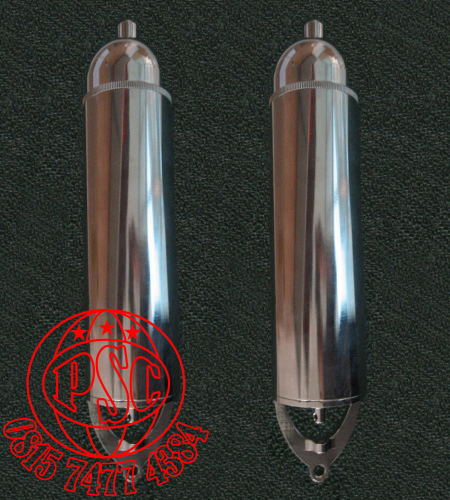

Bacon Bomb Sample Thief Koehler Instrument

Bacon Bomb Sample Thief Koehler Instrument

Test Method

All Samplers Conform to ASTM D4057 (Formerly ASTM D270), D6074 or ASTM D1265 Spec

Ordering - Sample Thief

P/N

Construction

Seal

Outside Dia.
( OD ) in. ( cm )

Overall Length

Ship Weight

in ( cm )

lbs ( kg )

K27700

Plated Brass

Viton O-ring

3⅜ (8.6)

15 5/32 (38.5)

13 ( 5.9 )

K27701 *

SS

V O-ring

3⅜ (8.6)

15 5/32 (38.5)

13 ( 5.9 )

K27790

P Brass

V O-ring

2¾ (7)

12 1/32 (30.6)

9 (4.1)

K27795

P Brass

metal Seat

2¾ (7)

12 1/32 (30.6)

9 (4.1)

K27791

SS

V O-ring

2¾ (7)

12 1/32 (30.6)

8 (3.6)

K27792

Acrylic

V O-ring

2¾ (7)

12 1/32 (30.6)

8 (3.6)

K27780

P Brass

V O-ring

2 5/16 (5.9)

10 5/32 (25.8)

5 (2.3)

K27785

P Brass

metal Seat

2 5/16 (5.9)

10 5/32 (25.8)

5 (2.3)

K27781

SS

V O-ring

2 5/16 (5.9)

10 5/32 (25.8)

5 (2.3)

K27782

Acrylic

V O-ring

2 5/16 (5.9)

10 5/32 (25.8)

5 (2.3)

K27770

P Brass

V O-ring

1⅞ (4.7)

9 11/16 (24.6)

4 (1.8)

K27771

SS

V O-ring

1⅞ (4.7)

9 11/16 (24.6)

4 (1.8)

K27772

Plexiglass

Buna N O-ring

1⅝ (4.01)

9 11/16 (24.6)

3 (1.4)

K27760

P Brass Slim Model

V O-ring

1⅛ (2.8)

13¼ (33.7)

3 (1.4)

K27761

SS Slim Model

V O-ring

1⅛ (2.8)

13¼ (33.7)

3 (1.4)

K27762

Acrylic Slim Model

V O-ring

1⅛ (2.8)

13¼ (33.7)

3 (1.4)
