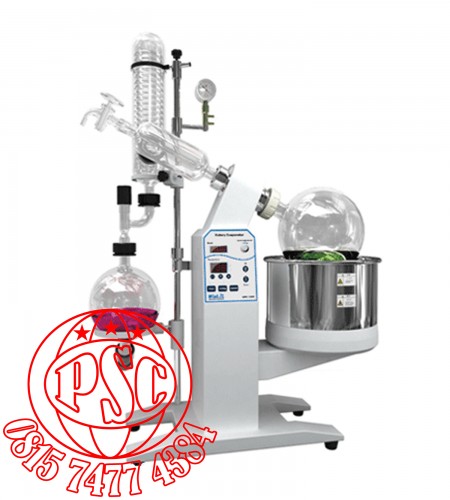

Rotary Evaporator WEV-1005 Daihan Scientific

Rotary Evaporator WEV-1005 Daihan Scientific

DAIHAN-brand  5 Lit. Digital Rotary Evaporator,  “WEV-1005” Large Capacity, Vertical –type Digital Controlled Stainless steel Bath 99 ℃, with Electric Lift Bath,  10~130 rpm

■ with Certificate & Traceability :

Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data base System

■ Ideal for Distill of ( Mixed ) Solvent, Condensation Solution and Suspension, Concentrate Liquid, Re-crystallization, Dry Powder and Granulate, Synthesize Chemical, Soxhlet Extraction, Recycle Solve

■ Cooling Surface 2,700 cm²

■ Teflon ( PTFE ) and Fluorine Rubber Dual Rotating Seal, Patented Technology to ensure High Vacuum.

■ A Vacuum Switching Valve, without Affecting the System Vacuum Distillation of the Situation and the Solution can be Continuously Collected.

■ Stainless steel Water Bath Electric Lift, Easy to Use.

� Water Bath Electric Lift, Easy to Use.

� The Introduction of Foreign Advanced Frequency Control System, Temperature Control System, Accurate and Reliable.

� a Vacuum Switching Valve, without Affecting the System Vacuum Distillation of the Situation and the Solution can be Continuously Collected.

� PTEE Discharge Valve, Corrosion Resistance, Pollution-free.

Specification

Model

“WEV-1005”

Evaporating Flask

5 Lit., Flange Opening Φ50 mm

Receiving Flask

3 Lit.

Condenser

Vertical type water refrigerating

Temp. Range

Ambient Temperature +5 ℃ ~ 99 ℃

Rotary Speed

10 ~ 140 rpm

Evaporating Capability

Water : 2 Lit./h, Alcohol : 4 Lit/h

Cooling Surface

2,700 cm²

Achievable Vacuum

399.9 Pa ( below 3 mmHg )

Functional of Lifting Table

Electric

Elevating Stroke

0 ~ 150 mm

Vacuum Sealing

PTFE and Fluorine Rubber Dual Rotating Seal

Phase AD Induction Motor

Motor

40 W

Heating Boiler

Stainless steel Water Bath

Display

Digital display

Power Consumption

2.2 KW

Dimension

765 × 400 × h1070 mm

Power Supply & Cord Plug

220 V, 50 Hz
