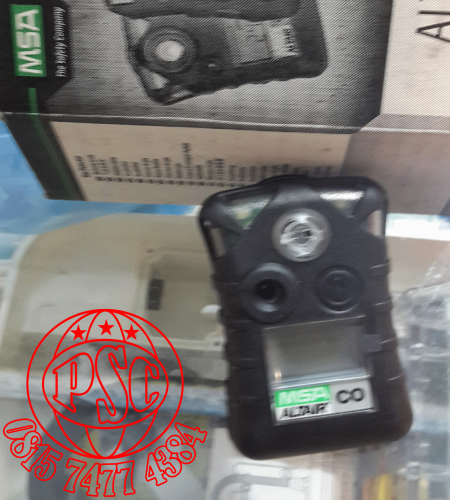

MSA Altair Pro Single Gas Detector

Altair Pro Single Gas Detector MSA

Specifications

Weight

4.0 oz including clip

Dimensions

3.4" x 2.0" x 1.0"

Operating Range

-20 ˚C to +50 ˚C ( -4 to +122 ˚F )

Humidity

10 - 95 %   RH non-condensing

Warranty

See instruction manual for full warranty information

Instrument Life

Indefinite with sensor and battery replacement as needed

Gallery

CR2 lithium camera battery ( 9000 hour installed life – typical )

Case

Polycarbonate with rubberized shell

Display

Large LCD with backlight

Humidity

10 – 95 % RH non-condensing

IP

IP67 ( except O2-R is IP54 )

Data Logging

50 latest events in session log. Peak value every 3 minutes in periodic log.

Certification US & Canada

Class I, Div. 1, Groups A, B, C and D; Class II, Div. 1, Group G

Europe

Ex ia IIC T4

USA

AEx ia IIC T4

European Union

ATEX II 2G Ex ia IIC T4

Australia

Ex ia IIC T4 ( Ta = 50 ˚C )

Gases Measuring Ranges

Gas

Range

Resolution

Oxygen

0-25 % by vol

0.1 Vol.%

Carbon Monoxide

0-1500 ppm

1 ppm

Hydrogen Sulfide

0-200 ppm

1 ppm

HydrogenCyanide

0-30 ppm

0.5 ppm

Chlorine

0-20 ppm

0.1 ppm

Chlorine Dioxide

0-1.00 ppm

0.02 ppm

Sulfur Dioxide

0-20 ppm

0.1 ppm

Nitrogen Dioxide

0-20 ppm

0.1 ppm

Ammonia

0-100 ppm

1 ppm

Phospine

0-5.00 ppm

0.05 ppm

Remote Oxygen ( O₂-R )

0-25 % by vol

0.1 Vol %

Alarms

Average > 95 dB @ 1 ft, bright LEDs, vibrating alarm standard
