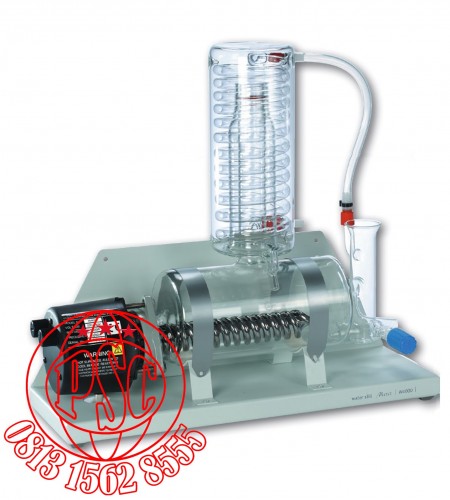

Merit Water Still W4000 Stuart

Merit Water Still W4000 Stuart

Economical price

Glass construction with long life metal heating element

Two independent safety thermostats

Wall mountable

The Merit is the ideal choice for budget conscious laboratories that can't afford to compromise on quality. It combines economy and high performance with a host of other features which comparable stills cannot match.

Built in acid addition funnel and drain stopcock allow easy descaling without dismantling the glassware. The unique condenser design ensures that the droplets of distilled water remain in contact with the cooling coil for the longest possible time producing cold distilled water and pre-heating the boiler feed to increase efficiency. Screwthreads are incorporated on all water connections so hoses can be fitted and removed easily and safely without risk of breakage.

Safety features include two independent safety thermostats to prevent over heating in the event of failure of the water supply. The stand is pre-drilled to facilitate wall mounting.

Specifications

Output

4 litres/hr, single distilled

pH

5.0 - 6.5

Conductivity, µScm-1

3.0 - 4.0

Resistivity, mOhm-cm

0.25 - 0.3

Temperature

25 - 35 °C

Pyrogen content *

Pyrogen free

Water supply

1 litre/min, 3 - 100 psi, ( 20 - 700 kPa )

Electricity supply

220 or 240 V, 50-60 Hz, single phase

Power requirement

3 kW

Dimensions, ( w x d x h )

500 x 150 x 450 mm

Order Information

Model

Description

W4000

Merit water still, 240 V

W4000/EURO

Merit water still, 220 V
