DR 6000 UV VIS Spectrophotometer Hach

DR 6000 UV VIS Spectrophotometer Hach

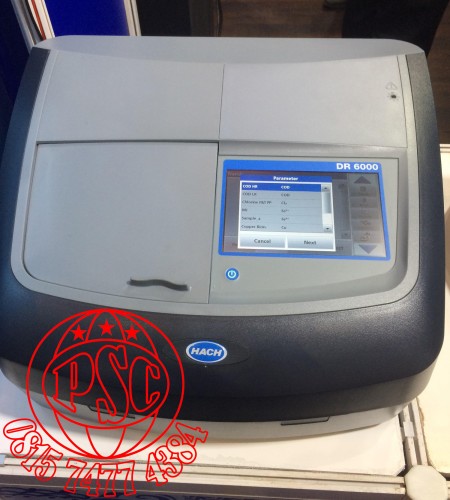

DR 6000™ UV VIS Spectrophotometer with RFID Technology

Catalog

LPV441.99.00012

LPV441.99.00002

Specifications

Data Logger

5000 data points ( result, date, time, sample-ID, user-ID )

Dimensions ( H x W x D )

215 mm x 500 mm x 460 mm

Display

TFT 7 inch WVGA color touch

Enclosure Rating

IP20 with closed lid

Includes

1 x Power Cord ( US, EU )

1x Universal-Adapter

1x Dust Cover

Matched pair of 1 inch glass sample cells

Printed multilingual basic user manaul ( en, es, fr, ja, ko, pt, zh )

Length

460 mm

Manual Languages

en, es, fr, ja, ko, pt, zh

Operating Conditions

10 to 40 °C, max. 80 % relative humidity ( non-condensing )

Operating Mode

Transmittance ( % ), absorbance and concentration ( wavelength, time )

Optical System

Reference beam, spectral

Photometric Accuracy

5 mAbs at 0.0 to 0.5 Abs

<1 % at 0.5 to 2.0 Abs at 546 nm

Photometric Linearity

0.005 to 2 Abs

≤ 0.01 at > 2 Abs with neutral glass at 546 nm

Photometric Measuring Range

± 3 Abs

Power Requirements

100 - 240 V; 50/60 Hz

Preprogrammed Methods

> 240

Sample Cell Compatibility

Rectangular: 10, 20, 30, 50 mm, 1 inch; round: 13 mm, 16 mm, 1 inch

Optional 100 mm rectangular cell with additional adapter

Scanning Speed

900 nm/min ( in 1 nm steps )

Spectral Bandwidth

2 nm

Storage Conditions

-25 to 60 °C / max. 80 % relative humidity ( non-condensing )

Stray Light

KI-solution at 220 nm < 3.3 Abs/ < 0.05 %

User Interface Languages

bg, cn, cz, da, en, es, fr, gr, hr, hu, it, jp, kr, nl, pl, pt, ro, ru, sl, sl, sv, tr

User Programs

200

Warranty

1 year

Wavelength Accuracy

 ± 1 nm

Wavelength Range

190 to 1100 nm

Wavelength Reproducibility

< 0.1 nm

Wavelength Resolution

0.1 nm

Wavelength Selection

Automatic, based on method selection

Weight

24.25 lbs. ( 11 kg )
