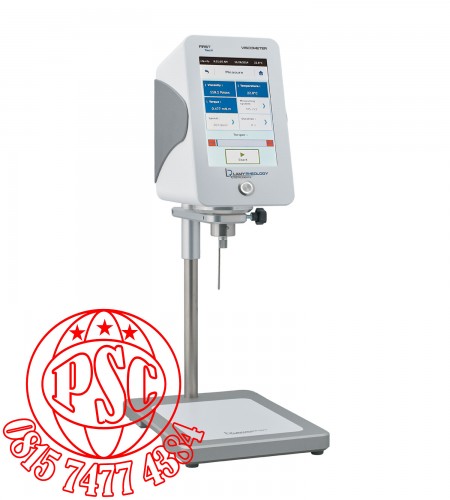

Viscometer First Touch Lamy Rheology

Viscometer First Touch Lamy Rheology

Specification

Type of instrument

Rotating viscometer

Speed range

Unlimited number of speeds between 0.3 and 250 rpm

Torque Range

From 0.05 to 13 mNm | From 0.005 to 0.8 mNm ( LR VERSION )

Temperature

The FIRST TOUCH has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C.

Accuracy

+/- 1 % of the full scale

Repeatability

+/- 0,2 %

Viscosity Range

3 - 180,000,000 mPa·s depending on the measuring geometry used.

Display

7” Touch screen

Display Settings

Viscosity | Speed | Torque | Temperature | Time | Measuring geometry | Level of sensitivity | Date/ hour | Choice of viscosity units : cP or  mPa·s | Language : French/English

Security and Confidentiality

An "operator" function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.

Supply Voltage

90-240 VAC 50/60 Hz

Analog Output

4 – 20 mA | Torque range to be defined by user

PC Connections

RS232 Port and USB

Printer Connection

USB Host Port

Benefits for you

You can connect a USB printer. External control thanks to the optional VISCO RM software. The FIRST TOUCH lets you set measuring times for thixotropic products. Get kinematic viscosity by inputting the density of your product.

Carry Case

Optional

Dimensions and weight

Head : L 180 x W 135 x H 250 mm

Hardened steel stand : L 280 x W 200 x H30 mm

Stainless steel rod : Length 500 mm

Weight : 6.7 kg
