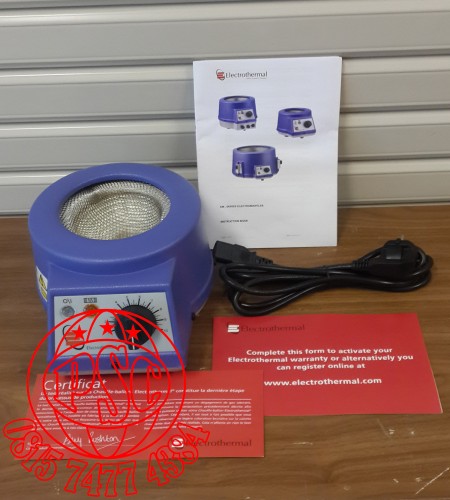

CMU Heating Mantles Uncontrolled Electromantles
Perhatian!
Spesifikasi CMU Heating Mantles Uncontrolled Electromantles
|
CMU Uncontrolled Electromantles |
|||
|
CMU heating mantles are used in wet chemistry to heat liquids in round bottom flasks. The metal case is designed to remain "cool-to-the-touch" when in operation. Electrothermal heating mantles have a grounded stainless steel earth screen covering the element and are double fused for added safety |
|||
|
Key Features |
|||
|
Valuable for fume hood or remote working |
|||
|
Must be used with a controller; recommended controllers are MC5 and MC242 |
|||
|
Round bottom flask capacities of between 50ml to 5000 ml |
|||
|
"Cool-to-touch" outer casing |
|||
|
Element temperatures up to 450 °C |
|||
|
Indicator lamps for power and heater operation |
|||
|
Replaceable insulated heater cartridge |
|||
|
Rugged, easy to clean powder coated aluminium casing |
|||
|
Non-skid feet and support rod bracket ( but not including the support rods ) |
|||
|
Flexible coiled heating elements absorb shock, minimising the risk of flask breakage |
|||
|
Heating element is attached to a rigid thermal insulating cartridge to ensure maximum heat transfer and support |
|||
|
Safety features such as grounded earth stainless steel screen covering the heating element and double fuses |
|||
|
Certifications : CE |
|||
|
Technical Specification |
|||
|
CMU Models |
CMU0050,CMU0100,CMU0250 |
CMU0500,CMU1000 |
CMU2000,CMU3000,CMU5000 |
|
Flask capacity |
50 - 250 ml |
500 - 1000 ml |
2000 – 5000 ml |
|
Case material |
Powder coated aluminum |
Powder coated aluminum |
Powder coated aluminum |
|
Max element temperature |
450 °C |
450 °C |
450 °C |
|
Dimensions ( D x W x H ) |
175 x 175 x 150 mm |
220 x 220 x 170 mm |
320 x 320 x 220 mm |
|
Shipping weight |
0.75 kg |
1.5 kg |
2.75 kg |
|
Ordering Information |
|||
|
Model |
Capacity |
Electrical Requirements |
|
|
CMU0050/E |
50 ml |
230v 50/ 60Hz, 75 w, With UK and EU plugs |
|
|
CMU0050/EX1 |
50 ml |
115v 50/ 60Hz, 75 w |
|
|
CMU0100/E |
100 ml |
230v50/ 60Hz, 100 w, With UK and EU plugs |
|
|
CMU0100/EX1 |
100 ml |
115v 50/ 60Hz, 100 w |
|
|
CMU0250/E |
250 ml |
230v 50/ 60Hz, 200 w , With UK and EU plugs |
|
|
CMU0250/EX1 |
250 ml |
115v 50/ 60Hz, 200 w |
|
|
CMU0500/E |
500 ml |
230v 50/ 60Hz, 280 w, With UK and EU plugs |
|
|
CMU0500/EX1 |
500 ml |
115v 50/ 60Hz, 280 w |
|
|
CMU1000/E |
1000 ml |
230v 50/ 60Hz 380 w, With UK and EU plugs |
|
|
CMU1000/EX1 |
1000 ml |
115v 50/ 60Hz, 380 w |
|
|
CMU2000/E |
2000 ml |
230v 50/ 60Hz, 500 w, With UK and EU plugs |
|
|
CMU2000/EX1 |
2000 ml |
115v 50/ 60Hz, 500 w |
|
|
CMU3000/E |
3000 ml |
230v 50/ 60Hz, 500w, With UK and EU plugs |
|
|
CMU3000/EX1 |
3000 ml |
115v 50/ 60Hz, 500 w |
|
|
CMU5000/E |
5000 ml |
230v 50/ 60Hz, 800 w, With UK and EU plugs |
|
|
CMU5000/EX1 |
5000 ml |
115v 50/ 60Hz, 800 w |
|
