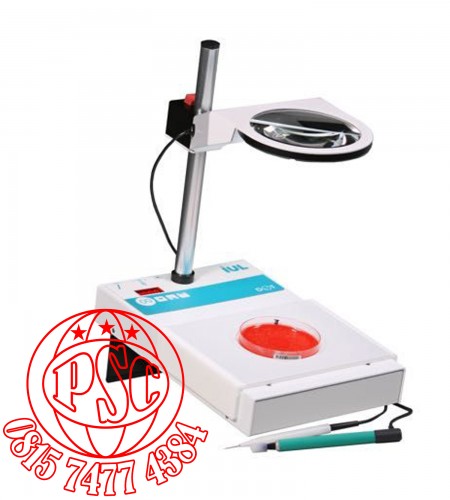

DOT-Colony Counter IUL Instruments

DOT-colony Counter IUL Instruments

Technical Data

Counter

4 digits, 9 mm LED-Display. Maximum count 9999

Inputs

Clickable permanent marker/ Stainless contact pointer ( optional ).

Outputs

USB Human Interface Device ( HID ) emulating standard PC keyboard output receivable by PC running keyboard compatible applications ( Microsoft Windows ® ).

USB Virtual COM port ( VCP ) reserved for IUL, S.A. Technical Service purposes.

Upper light power ( 12 V DC, 500 mA ).

Magnifying glasses

Biconvex, 100/120 mm Ø, 4 Diopters, DIN x 2

Lightning

Bottom light, 4 selectable intensities, On/Off switching powered from the instrument.

Upper light ( depending of the glass magnifier ordered ), On/Off switching powered from the instrument.

Mains

100/240 V, 50/60 Hz

Power

50 W

Dimensions ( W x D x H )

211 X 320 X 335 mm / 8.3 X 12.6 X 13.2 in ( Cat. No. 90008700 )

211 X 320 X 395 mm / 8.3 X 12.6 X 15.5 in ( Cat. No. 90008701 )

Weight

3,2 Kg / 7,0 lb ( Cat. No. 90008700 )

2,7 Kg / 5,95 lb ( Cat. No. 90008701 )

Accessories

Cat.

No

60 mm centering device

9000606

80 mm centering device

9000608

100 mm centering device

9000610

120 mm centering device

9000612

150 mm centering device

9000615

Mixed grid 1/16 cm²

9000613

Mixed reticule 1/9 cm²

9000616

Spiral grid

9000625

Clickable permanent marker

900011459

Stainless contact pointer

900011460
