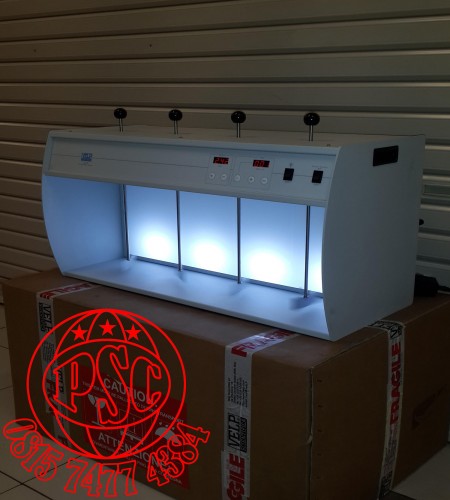

Jar Tester-Flocculator FC4S-FC6S Velp Scientifica

Jar Tester-Flocculator FC4S-FC6S Velp Scientifica

Independently selectable speeds 10-15-30-45-60-90-120-150-200-300 rpm

Optional maximum speed of 300 rpm upon request

Same product can be submitted to different conditions in parallel

Reliable and repeatable results from VELP stirring quality

Precise speed from an electronically controlled DC gear motor

Versatile Operation

Choice of 4- or 6-place models

FC 4S, 4-position jar tester

FC 6S, 6-position jar tester

Speed can be changed during the run

Illuminated back panel to simplify sample observation

Stirring rods adjustable in height without tools

Robust Design

Strong resistance to chemical and mechanical corrosion

Recommendations

Select the accessories that match your requirements

Product Code

Description

Power Supply

Code

FC4S

100-240 V / 50-60 Hz

F105A0111

FC6S

100-240 V / 50-60 Hz

F105A0112

Technical Data

Construction material

Epoxy painted metal structure

Models

FC4S : 4 Positions

FC6S : 6 Positions

Back panel

Disconnectable illuminated

Stainless steel stirring rods

Adjustable in height by a self blocking chuck

Pluriselector

Settable individual speed for each rod

Power

FC4S : 18 W

FC6S : 23 W

Weight

FC4S : 12.5 kg ( 27.5 lb )

FC6S : 18 kg ( 39.6 lb )

Dimensions ( W x H x D )

FC4S : 645 x 347 x 260 mm ( 25.4 x 13.7 x 10.2 in )

FC6S : 935 x 347 x 260 mm ( 36.8 x 13.7 x 10.2 in )

Performance

Speed selector settable at

10 - 15 - 30 - 45 - 60 - 90 -120 - 150 - 200 - 300 rpm
