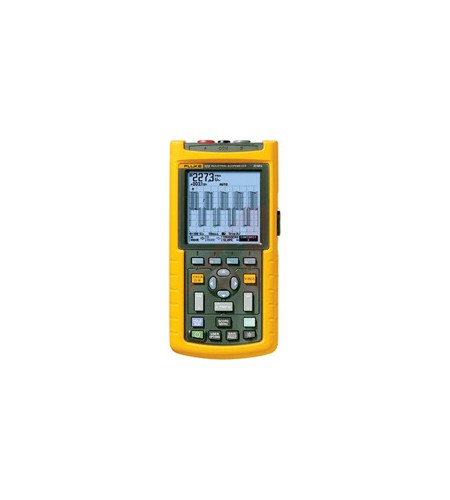

Fluke 123/S Industrial ScopeMeter® Hand Held Oscilloscope
Perhatian!
Spesifikasi Fluke 123/S Industrial ScopeMeter® Hand Held Oscilloscope
| Specifications | |
| Oscilloscope bandwidth | 20 MHz |
| Dual input true RMS meter | VDC, VAC, VAC + VDC, Ohms,Continuity, Diode-test Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset |
| TrendPlot recording | Automatic vertical scaling and time compression Display the actual, MIN, MAX and AVG reading |
| Real-time sample rate | 25 MS/s |
| Equivalent sampling rate | Up to 1.25 GS/s |
| Inputs and digitizers | 2 |
| Timebase range | 10 ns - 1 min/div |
| Input sensitivity | 5 mV - 500 V/div |
| Trigger types | Connect-and-View™, Free Run, Single Shot, Edge, Video, External |
| Glitch capture | 40 ns |
| Scope measurements | Automatic measurements: 26 (all instruments) |
| Maximum record length | 512 min/max pts per input |
| Memory | 10 screens and setups |
| Environmental Specifications | |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to +60°C |
| Operating altitude | 3,000 m |
| Safety Specifications | |
| Electrical safety | 600V CAT III (EN61010-1) |
| Mechanical and General Specifications | |
| Size | 232 x 115 x 50 mm |
| Weight | 1.2 kg |
| Warranty | 3-years on main instrument 1-year on accessories |
| Battery life | 7 hrs using NiMH |
| RS232/USB interface | Optically isolated via optional PM9080 or OC4USB for interfacing to Printer or PC |
