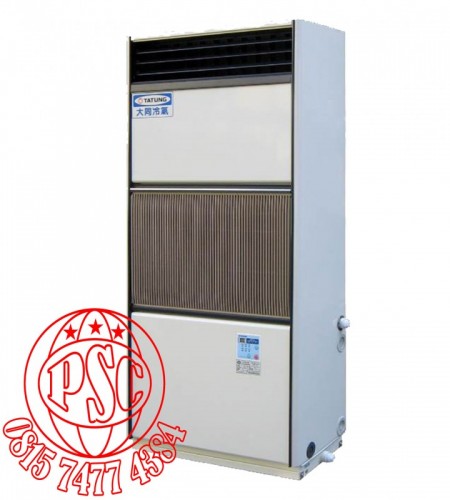

Dehumidifier Tatung

Dehumidifier Tatung

Wide-temperature application :

Tatung Dehumidifier is designed as B type, it can operate smoothly at the room temperature from 5 °C to 40 °C

Large dehumidification capacity :

  Each hour can remove 4,000 - 1000 C.C. Of moisture from the atmosphere ( at the conditions of temperature 27 °C and humidity 60 % R.H.) and can reach to 7,000 - 16,000 C.C at the conditions of temperature 30 °C and 80 % R.H

The dirt can be removed through the filter and keep the room air clean.

Unique unit designing make makes energy-saving and easily instalation.

LED-display controller : operate the unit more easily and friendly.

Safety devices : protect the unit from unexpected damage.

Specifications

Model

TCD-2ELS

TCD-3ELS

TCD-5ELS

Power Source

1Ø 220 V 50 Hz

3Ø 380 V 50 Hz

Capacity

( L/day )

100

142

246

based condition

27 ℃ 60 % RH

27 ℃ 60 % RH

27 ℃ 60 % RH

Running current

A

9.0

5,9

9,6

Starting current

A

42

35

57

Power consumption

KW

1,9

3,2

5,13

Compressor

Type

Rotary

Scroll*1

Scroll*1

Output

KW

1,5

2,2

3,75

Adjust

%

100

100

100

Cooler ( Evaporator )

Cross-fin coil

Re-Heater ( Condenser )

Cross-fin coil

Fan

Type

Multi-blade

Air flow

CMM

30

30

53

( 60/50 Hz )

Output

kW

0,11

0,11

0,4

Air Filter

Nylon

Refrigerant Control

Expansion valve

Capillary

Humidity regulator

LED Micon

Defrost method

Compressor OFF

Safety Devices

Low pressure switch, Compressor over- load protector

High and Low pressure switch, Compressor internal protector, Phase reversal protector.Fusible plug ( only for TCD-5NB )

Refrigerant type

R-22

Refrigerant Charge

kg

1,2

1,4

1,82

DIM.

Height

mm

1700

1700

1870

Width

mm

750

750

950

Depth

mm

380

380

510

Weight

kg

120

130

180

Draining pipe

PS 1B
