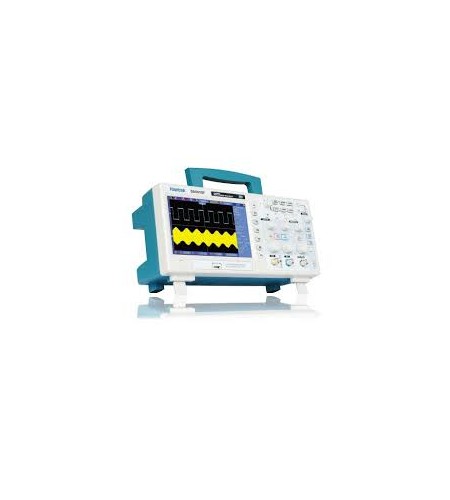

Hantek DSO5102P - 2-Channel 100MHz Oscilloscope (with 800x480 screen)
Perhatian!
Spesifikasi Hantek DSO5102P - 2-Channel 100MHz Oscilloscope (with 800x480 screen)
- 100MHz bandwidth
- 1GS/s Real Time sample rate
- Large (7.0-inch) color display – WVGA (800x480)
- Record length up to 40K
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
- Multiple automatic measurements
- Four math functions (including FFT)
- Comes with PC software for real-time analysis
Brief Specification:
|
Model |
DSO5102P |
|
Bandwidth |
100MHz |
|
Channel |
2 |
|
Real-Time Sample |
1GSa/s |
|
Equivalent Sample |
25GSa/s |
|
Memory Depth |
40K |
|
Rise Time |
3.5ns |
|
Time Base Accuracy |
±50ppm |
|
Time Base Range |
4ns/div-40s/div |
|
Input Impendence |
1MΩ |
|
VOLTS/DIV Range |
2mV/div～5V/div |
|
A/D Converter |
8 bit |
|
Position Range |
±50V(5V/div), ±40V(2V/div～500mV/div), |
|
DC Gain Accuracy |
±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; |
|
Bandwidth Limit |
20MHz |
|
Trigger Types |
Edge, Video, Pulse, Slope, Over time, Alternative |
|
Trigger Source |
CH1, CH2, EXT, EXT/5, AC Line |
|
Math |
+,-,x,÷,FFT |
|
Cursor Measurement |
Voltage difference between cursors: △V; |
|
Auto Measurements |
Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Period Mean, Period RMS, FOVShoot, RPREShoot, BWIDTH, FRF |
|
Display |
7" TFT 16K Color LCD, 800*480 dots |
|
Size |
313mm x 108mm x 142mm |
|
Weight |
2.08KG |
