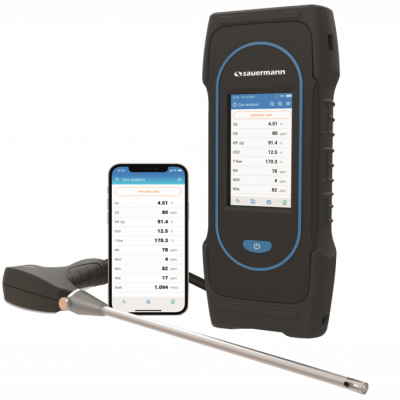

Flue Gas Analyzer Si-CA 230, Sauermann | Alat Uji Emisi Sumber Tidak Bergerak

Sauermann SICA 230 KIT 6NDSC Gas Analyzer / Combustion Gas Analyzer untuk Emissions Monitoring pada Cerobong Asap, Boiler, Mesin & Uji Emisi pada mesin Industri. Gas Analyzer alat uji Emisi Sumber Tidak bergerak untuk pengukuran pada cerobong asap industri dengan parameter gas : O2, CO, NO, NO2, SO2, CxHy secara bersamaan, hasil pengujian dapat di printer sebagai laporan. Sauermann / Kimo Instrument SICA 230 Flue Gas Analyzer alat uji emisi di lengkapi dengan Sampling Probe 750mm dan Printer Wireless

Flue Gas Analyzer
Type : SICA 230 KIT 6NDSC
Product : Sauermann (Francis)
Specification :

	GAS	:	Range	Resolution
▪	O2	:	0-25%	0.01%
▪	CO	:	0-10.000 ppm	1 ppm
▪	CO2	:	0 to 99.9%	0.1%
▪	NO	:	0-5.000 ppm	1 ppm
▪	NO2		0-1.000 ppm	1 ppm
▪	SO2	:	0-5.000 ppm	1 ppm
▪	CxHy (HC)	:	0 to 5%	0.01%
▪	Flue Temperature		-20 to +1250 °C	0.1 °C
▪	Air Temperature	:	-20 to +120 °C	0.1 °C
▪	Differential Temp.		0 to 1250 °C	0.1 °C
▪	Pressure/Draff	:	-200 to +200 mba	0.01 mbar
		:	-80 to +80 in H2O	0.001 in H2O
▪	Excess air	:	0 to 999%	1%
▪	Efficiency	:	0 to 100%	0.1%
▪	Efficiency (condensation)	:	0 to 125%	0.1%
▪	Stack Gas Velocity	:	0 to 99 m/s	0.1 m/s
		:	0 to 19,500 fpm	1 fpm
▪	Probe	:	750mm probe length, 3m dual hose, rated to 1200°C
▪	Dimensions/ weight	:	28 x 11.2 x 5.5 cm / 825 g
▪	Display	:	Color Touch Screen; 480 x 272 pixels
▪	Keypad	:	1 On-Off key
▪	Material	:	ABS-PC
▪	Protection	:	IP42
▪	Connection	:	Wireless: class 2 range, range frequency from 2402 MHz to 2480 MHz
			with a transmit power of 1 dBm. Range up to 15 m (50 ft),
			depending on smartphone radio strength.
			Minimum required versions: Android 8.0, iOS 12.4, BLE 4.0 Low Energy
		:	USB
▪	Power supply	:	Rechargeable battery, USB power supply
			Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the
			mains unit: 100-240 Vac, 50-60 Hz Mains unit: 5 Vdc/2A
▪	Battery	:	Battery life > 8 h; Charging time: Fully charge: < 6.5 h; 50%: < 2.5 h
▪	Memory	:	Internal memory up to 2000 tests
▪	Environmental	:	Temperature: from -5 to 45 °C (23 to 113 °F),
	conditions of use		Hygrometry: in non-condensing conditions (< 85% RH)
			Maximum altitude: 2000 m (6561’)
▪	Languages	:	English, French, German, Spanish, Italian, Portuguese, Chinese
▪	European Union Directives	:	2014/53/EU (RED); 2015/863 EU (RoHS 3)
▪	Regulations	:	EN 50379-1 and EN 50379-2; UNI 7129; UNI 11137; UNI 10389; UNI 10845;
			UL & cUL Certification; BS 7967:2015; BS EN 50543:2011; UNE 60670-10; ES.02173.ES;
			TÜV SÜD Certification
▪	Complete Unit	:	Main unit included with 6 sensor gas O2, CO, NO, NO2, SO2, CxHy
		:	750 mm Sampling Probe with 3 m house
		:	Protective rubber hoister
		:	ABS plastic carrying case
		:	Power Charge, USB cable
		:	Quick guide and Calibration certificate

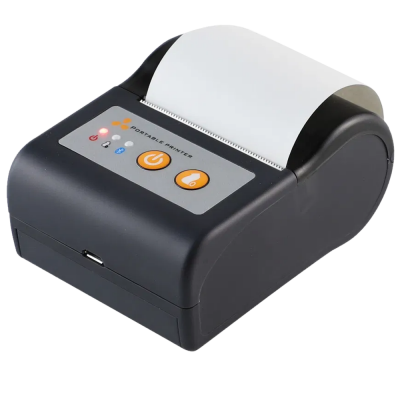

		:	Remote wireless printer
