Spesifikasi Portable Petroleum Quality Analyzer

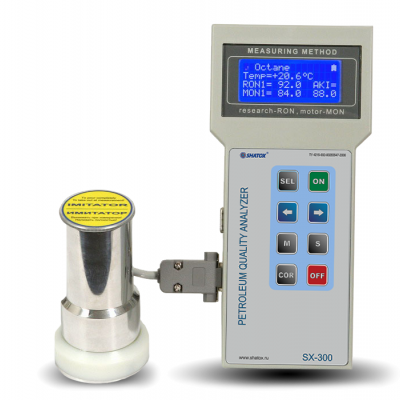

Shatox SX-300 Portable Petroleum Quality Analyzer adalah alat ukur kualitas kandungan minyak Octane, Cetane, Mengukur resistivitas volume minyak dengan presisi tinggi, Persentase air dalam minyak sesuai dengan GOST 14203-69 (metode pengukuran kelembaban dielectric), Informasi harga Shatox SX-300 dapat di email ke : info@cv-akl.com atau SMS : 0812.8199-300
Portable Petroleum Quality Analyzer
Type : SX-300
Brand : Shatox
Spesifikasi
| ▪ | Range of measured petrol octane level | : | 40-125 ON |
| ▪ | Acceptable limit of octane number measurement basic error, max | : | ± 0.5 ON |
| ▪ | Range of measured cetane level | : | 20-100 CN |
| ▪ | Acceptable basic error limit of cetane numbers, max | : | ±1.0 CN |
| ▪ | Kerosene content determination range in diesel fuels | : | 0-95 % |
| ▪ | Acceptable basic error limit when determining kerosene content in diesel fuels | : | 0.2-1% |
| ▪ | Acceptable error limit when determining diesel-fuel pour point | : | ± 5 ºC |
| ▪ | Determination range for mechanical impurities content in oil products | : | 97-100% |
| ▪ | Range of measured dielectric permeability of oil products | : | 1-5 units |
| ▪ | Range of water-in-oil content determination for oil products | : | 0-4% |
| ▪ | Acceptable basic error limit when determining water-in-oil content of oil products | : | 0.01% |
| ▪ | Measurement time | : | 1–5 sec |
| ▪ | Insufficient power supply indication operation threshold | : | 5.4 V |
| ▪ | Instrument useful life | : | minimum 6 years |
| ▪ | Overall dimensions of | : | |
| electronic module | : | 211 х 100 х 45 mm | |
| sensor #1 and #2 | : | 60 х 100 mm | |
| Instrument weight with one sensor/two sensors | : | 680 / 850 g | |
| ▪ | The instrument is designed to determine | ||
| Petrol octane level. Complies with ASTM D 2699-86, ASTM D 2700-86 | |||
| Diesel fuel cetane level. Complies with ASTM D 4737-03, ASTM D 613, EN ISO 5165. | |||
| ▪ | Reference parameters: | ||
| Water-in-oil percentage of oil and oil products | |||
| Solidification temperature and diesel fuel type | |||
| Content of kerosene in diesel fuel | |||
| Petrol breakdown time (oxidative stability). Complies with ASTM D 525 | |||
| Content of antiknock compounds boosting the octane number of petrols | |||
| Content of pour-point depressants for diesel fuels | |||
| Loss angle tangent of circuit-breaker, machine and engine oil. | |||
| Level of engine, machine and circuit-breaker oil clarity. | |||
| Manufacturer, engine oil brand | |||
| Engine oil base number | |||
| Oil products volume resistivity | |||
| Determining the mechanical impurities content in oil products. | |||
| Dielectric permeability of oil products (Eps). | |||
| ▪ | Delivery package | ||
| Electronic computing module | |||
| Sensor #1 | |||
| Sensor #2 | |||
| Sample imitator for sensor #1 | |||
| Mini-USB cable | |||
| User manual | |||
| Warranty certificate | |||
| Quick start guide | |||
| Tool canvas bag |
