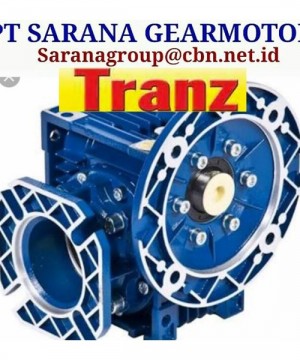

Jual NMRV GEAR REDUCER TRANZ WORM GEAR MOTOR PT SARANA GEARMOTOR
Gambar Produk
Jual NMRV GEAR REDUCER TRANZ WORM GEAR MOTOR PT SARANA GEARMOTOR
Minimum Pembelian
1 unit
Lokasi
DKI Jakarta - Jakarta Utara - Tanjung Priok
Harga
Kontak Kami
Dilihat Sebanyak
71 kali
Update Terakhir
04-09-2019
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual NMRV GEAR REDUCER TRANZ WORM GEAR MOTOR PT SARANA GEARMOTOR
Spesifikasi NMRV GEAR REDUCER TRANZ WORM GEAR MOTOR PT SARANA GEARMOTOR
PT SARANA GEAR MOTOR
EMAIL : SARANAGROUP#CBN.NET.ID
WORM GEAR TRANZ
NMRV Series
NMRV Series - Worm Geared Motors | Haumea
logo
Sizes: 025 -030-040-050-063-075-090-105-110-130-150
Available versions: NMRV - fitted for motor coupling, NRV - with input shaft, NMRL - with torque limiter
Power up to 15 kW
Patented case with modern design
Aluminuium units are supplied complete with synthetic oil which allows universal position mounting, with no need to modify lubricant quantity. Moreover units without plugs reduce the risk of oil oxidation and contamination.
Reduction ratios between 5 and 100
Max torque 1.550 Nm and admissible radial loads max 16.500 N
Cases up to 105 in die-cast aluminium alloy and over 110 in G200 grey cast iron
Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10)
Ground worm profile ZI (UNI4760)
Excellent mechanical strength while being especially lightweight
Load capacity calculated to BS721-83 and verified according to Niemann
Size 030 and over are painted with RAL 5010 blue epoxy-polyester powder in accordind to DIN 1843
PC, pre-stage reduction units available for motor power up to 2,2kW and size up to 090
Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRV+NRV, PC+NMRV
Automated manufacturing process not only guaratees fast service, but also reliability and quality
Options: torque arm, output flange, output shaft kit, cover, double extention high speed shaft
Sarana Teknik Gearbox
PT. Sarana Teknik Authorized Distributor Omega Motori Gear Motor Reducer & Vibrator Dodge Bearing Coupling Reducer Products.
PT. Sarana Teknik Authorized Distributor Bardor Electric ABB Motor Group
PT. Sarana Teknik Authorized Distributor Dodge Bearing Coupling Reducer Products
PT. Sarana Teknik Authorized Distributor Tsubaki Chain, Sprocket, Chain Coupling, Power Lock, Cam Cluth, Backstop, Power Cylinder products
PT. Sarana Teknik Agents Westcar Transfluid Trasmission Industrial Fluid Coupling
PT. Sarana Teknik Authorized Distributor Rexnord Omega Coupling, Viva Coupling, Bearing, Disk Coupling
PT. Sarana Teknik Authorized Distributor Falk Streelflex Grid Coupling, Gear Coupling, Wrapflex Coupling, Reducer
PT. Sarana Teknik Authorized Distributor Addax CT Disk Coupling Composite Coupling, Pillow Block Bearing
PT. Sarana Teknik Authorized Distributor Omega Motori Gear Motor Reducer & Vibrator
Pt. Sarana Teknik Telah Didedikasikan Untuk Memecahkan Masalah-Masalah Industri Dan Kami Didukung Oleh Engineer Yang Sangat Ahli Melalui Penjualan Dan Perwakilan Layanan Pelanggan Yang Terlatih Memberikan Bantuan Teknis Kepada Pelanggan Kami, Perusahaan Kami Akan Selalu Berusaha Untuk Menjadi Ramah, Membantu, Berpengetahuan, Dan Efisien.
Kembali Oleh Prinsipal Terkemuka Iso Dari Luar Negeri. Kami Telah Mempertahankan Tingkat Tertinggi Pengetahuan Tentang Semua Produk Kami.
PT. Sarana Teknik
Dodge, Tsubaki, Rexnord, Falk, Addax
Tel 021-6519582 Fax 021 65305868--6400893
