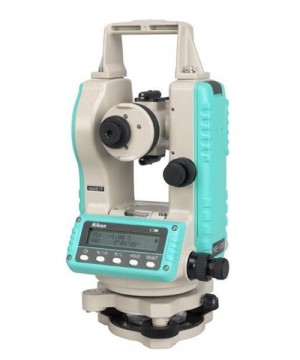

Digital Theodolite Nikon NE-100 diketahui memiliki tingkat akurasi yang baik, yang tentunya akan menjamin hasil pengukuran yang lebih maksimal dan memuaskan.

Digital Theodolite Nikon NE-100 Dengan spesifikasi  yang mumpuni, menjadikan Nikon Digital Theodolit ini banyak digunakan oleh para kontraktor maupun teknisi.

Fitur Digital Theodolite Nikon NE 100 (10 Second Accuracy)

• Measures vertical and horizontal angles
• 10-second accuracy
• Optical plummet
• Superior Nikon optics
• Detachable tribrach
• Reticle illumination for good viewing in low light conditions
• Simple user interface
• Water resistant and dustproof to IP-54
• Single backlit LCD display
• Five-button keypad
• Up to 48-hour battery life using alkaline batteries
• Battery life indicator
• Compact and easy to transport

Spesifikasi  DIGITAL THEODOLITE NE-100
TELESCOPE

• Effective diameter of objective: 1.77 in (45 mm)
• Magnification:    30x
• Image:    erect
• Field of view:    1°20′ (2.3ft @ 100 ft / 2.3m @ 100 m)
• Minimum focusing distance:    2.3 ft (0.7 m)
• Stadia multiplier constant:    100
• Stadia additive constant:    0
• Reticle illuminator:    provided

ANGLE MEASUREMENT

• Reading system:    photoelectric incremental encoder
• Circle diameter:    3.1 in (79 mm)
• Unit of reading:    degree / gon / mil
• Minimum digital reading¹:    5/10″, 1/2 mgon, 0.02/0.05 mil
• Accuracy (DIN 18723)    7″ / 2 mgon

DISPLAY/KEYPAD

• Type:    dot-matrix LCD (20 characters x 2 lines)
• Backlight:    1-level illumination
• Keypad:    5 buttons

OPTICAL PLUMMET

• Magnification:    2.2x
• Field of view:    5°
• Focus range:    4.3 ft (1.3 m) fixed

LEVEL SENSITIVITY

• Plate level:    40″ / 2 mm
• Circular level:    10′ / 2 mm

LEVELING base

• Type:    detachable
• AMBIENT TEMPERATURE RANGE    -4 TO 122 °F (-20 to 50 C)
• ENVIRonMENTAL RATING    IP54

DIMENSIONS

• Instrument:    6.0 x 6.8 x 13.1 in (153.5 x 172 x 334 mm)

WEIGHT

• Instrument:    9.8 lbs (4.5 kg)
• Carrying case:    5.4 lbs (2.5 kg)
• POWER SUPPLY
• Battery type:    1.5V alkaline AA x 6
• Continuous operating time (at 68 °F / 20C)    48 hrs

Paket Penjualan:

• Nikon NE-100 Unit & Hardcase
• Rambu ukur / leveling staff
• Allumunium tripod
