SOUND LEVEL METER
Perhatian!
Spesifikasi SOUND LEVEL METER

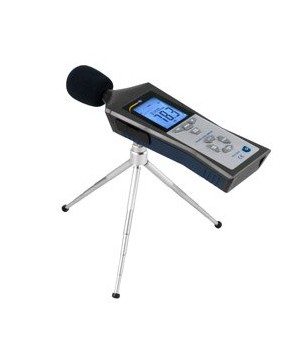

The PCE-322A noise meter is especially made for multiple measurement purposes referring to the sound level.
The noise meter is most commonly used for measurements in the industrial sector as well as for healthy-, safety and environmental purposes.
The environmental measurement also includes such parts as the noise contamination.
The storage function of the noise meter offers the possibility to save up to 32,700 measured values directly on the instrument.
This gathered data can be transferred to a computer by simply using an USB-cable. By doing so the data can be saved for later analysis in an Excel sheet.
In addition to that the software of the noise meter can also display real-time measurements on the computer screen.
Furthermore it is possible to create tables and graphs with the software.
- including analyzing software
- internal memory for 32,700 values
- resolution of 0.1 dB
- 1/2" Electret condenser microphone
Frequency weighting: A and C
- Frequency range of 31.5 Hz to 8 kHz
- Time valuation: fast and slow
- Ergonomically designed casing
- ABS enclosure
|
Technical specifications of the PCE-322A noise meter |
|
|
Automatic measurement range |
30 ... 130 dB |
|
Manual measurement ranges |
Low. 30 ... 80 dB |
|
Dynamic range |
50 dB |
|
Resolution |
0.1 dB |
|
Display |
4-digit LCD |
|
Accuracy |
±1.4 dB |
|
Measuring rate |
every 0.5 s |
|
Frequency |
31.5 Hz to 8 kHz |
|
Data Logger |
32,700 readings |
|
Frequency weighting |
A, C |
|
Time valuation |
fast: 125 ms |
|
Microphone type |
Electret |
|
Functions |
MIN / MAX / HOLD / ALARM |
|
Analogue output |
AC/DC |
|
Data interface |
USB |
|
Automatic shutdown |
after 15 minutes of inactivity |
|
Operating conditions |
0 ... +40°C, <90 % r.h. |
|
Storage conditions |
-10 ... +60 °C, 10 ... 75 % r.h. |
|
Power supply |
9 V Battery |
|
Dimensions |
280 x 95 x 45 mm |
|
Standard |
IEC 61672-1 (class II) |
|
Scope of delivery of the PCE-322A noise meter |
|
|
1 x PCE-322 A noise meter |
|
