Spesifikasi BZD135 Explosion-Proof Lamp
Detail BZD135 Explosion-Proof Lamp

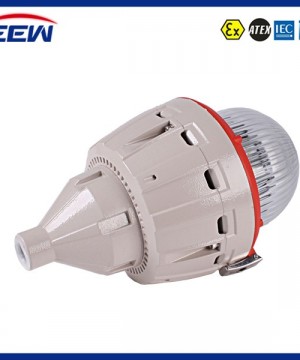

BZD135 Explosion-Proof Lamp
Application
Designed for Explosive Atmospheres Zone 1 and Zone 2;
Designed for Combustible Dust Zone 21 and Zone 22;
Designed for IIA, IIB and IIC Groups Explosive Atmospheres;
Designed for Temperature Classifications T1~T6;
Designed for Explosive Hazardous Locations Such as Oil Refinery, Storage, Chemical, Pharmaceuticals, Textile, Printing, Military Industries, Etc.
Ordering Refenrences
The Light Fitting is with LED When Delivery, the Lamp Start to Work as Power is Supplied.
Please Select Products as Per Model Code.
For Example: If Need BZD135 50W LED, Lamp and Ceiling Mounting Type, the Model Shall Be: LED135-50xH.
Tecnical Parameters
Compliance With: GB3836.1, GB3836.2, GB12476.1, GB12476.5,
Explosion Protection: Ex d IIC T6 Gb/Ex tD A21 IP66 T80℃;
Working Voltage: AC 100~240V, 50/60Hz
Lamp: LED;
Rated Power: 30W, 50W
Luminous Efficiency: ≥110lm/W;
Power Factor: ＞0.95;
Color Temperature: 5500K~6500K
Install Height: 2.5m ~ 5m
Intelligent Dimming Distance: 16m ~ 30m
View Angle: 30° ~ 170°
Ingress Protection: IP66;
Corrosion Resistance: WF2;
Ambient Temperature: -40℃≤Ta≤+40℃
Cable Entry: G3/4";
Cable Outer Diameters: Φ9mm~Φ14mm
Dimming Brightness: with People 100%, No Irritability 10%, 20% or 0%, Can Addjust from 0% ~ 100% According to Requirements.
Dimming Delay Time: with Interaction, 5% ~ 100% Step less Light Adjusting, Without Interaction 30 ~ 2 Minutes, the Brightness Goes Back to 5% ~ 20%.
Featuters
Enclosure is Die Casted of High-Strength Aluminum Alloy with High Voltage Electrostatic Powder Coated Surface After Shot Blasting;
Transparent Parts Made of Tempered Glass, High Transmittance, Impact Resistance;
The High Brightness LED Light Source is Used to Match the High Efficiency Constant Current Drive Power Supply and the Intelligent Power Regulator;
Power Drive with Luminous Flux Compensation Function, Reduce the Light, Ensure the Light Efficiency of LED Light Source;
The Power Supply Has the Function of over Voltage Protection, over Current Protection and Surge Current Protection;
According to the Light Distribution Design, the Level of 180 Degree Range of Irradiation, the Use of a Transparent Edge of the Prism Cover, Anti Glare;
The Utility Model Has the Function of Intelligent Light Adjusting, and the Human Body Can be Adjusted in Accordance with the Brightness After The Human Body is Moved in the Monitored Range;
Steel-Pipe Laying Wire.
