Spesifikasi CSE-A CSE-AL Series Junction Boxes
Detail CSE-A CSE-AL Series Junction Boxes

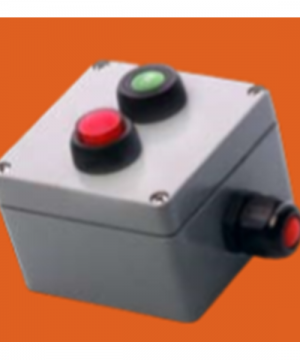

CSE-A CSE-AL series junction boxes
The CSE - A and CSE-AL enclosures are normally used in the chemical and petrochemical plants, off-shore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are potentially present.
The CSE enclosures range has been designed to meet the main requirements of power distribution, monitoring and signalling, and other electrical functions inside the hazardous area of the plant
Function
The CSE - A enclosures are normally used form the following main applications:
- control stations
- emergency call units
- instrument housings
- circuit breakers
- switches and changeover switches
- lighting controls - terminal boxes
- electrical housing
- battery container
The CSE - AL (light model) enclosures are used only as terminal boxes.
The CSE - A enclosures are available in different sizes so to create a large and modular range with different heights. The CSE - A enclosures, jointed together through dedicated flanges, can become a large panel, maintaining the original IP protection.
Starting height 80 mm. the CSE - A series can be equipped with operators (pilot lights, push buttons, switches, ect.) on cover.
Costruction
The materials used to manufacture the CSE - A and CSE - AL series have been studied to grant the maximum protection against the highly corrosive agents present in these industries:
- body and cover in copper-free (lower 0.1%) aluminium alloy
- antiloosening screws on cover in stainless steel AISI 316
- gasket on cover in silicone
- internal fixing screws in stainless steel
Accessories
To CSE - A enclosures can be completed with the following accessories:
- internal mounting plate in galvanized steel or stainless steel
- mounting brackets in stainless steel
- internal and external earth screws in stainless steel AISI 316
Protection
certificate number: IMQ 14 ATEX 004
marking:
` II 2GD Ex e ia IIC T6 Gb Ex tb IIIC T85°C Db (terminal boxes)
` II 2GD Ex d e mb IIC T6 Gb Ex tb IIIC T85°C Db (control stations)
ambient temperature: -60°C +60°C
degree of protection: IP66
conformity: Directive ATEX 94/9/EC
standards: EN60079-0 / EN60079-1 / EN60079-7 / EN60079-11 / EN 60079-18 / EN60079-31
category: suitable for Zone 1 – 21 (gas) and Zone 2 – 22 (dust)
