Jual Fusion Splicer Comway C10 | Mesin Splicing
Perhatian!
Spesifikasi Jual Fusion Splicer Comway C10 | Mesin Splicing

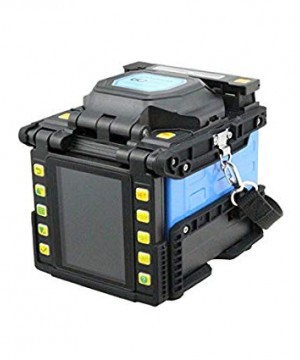

Fusion Splicer Comway C10 Splicing Machine High Performance ARC Fusion Splicer
Features :
1. Core-to-Core alignment system
2. Splicing 6 sec., heating 25 sec.
3. Fast boot technology
4. More than 300 times splicing and heating Resist dust, rain, wind, and shock
5. Fiber type identify, AUTO splicing mode
6. Easy to change electrode and fiber holder
7. High speed USB, maintenance via the Internet
Smart ARC Control Technology
Automatic calibration ARC discharge,
Different environment,
the same stable loss.
Super heater
12s heating time,
Faster and more power saving.
Real fiber core visualization technology
Core-to-Core alignment system, Keep the ultra-low splicing loss.
Fiber identification, AUTO splicing mode.
High light screen
Clearly visible under sunshine.
Ultra narrow ceramic V-groove
Precision machining process.
Suitable for all kinds of applications.
Ceramic fiber presser
Precision ceramics polishing process,
Stable and durable.
Simple light source
No mirror, no flat cable,
Stable and reliable,
Easy to maintain.
Large capacity battery
Removable,
Over 300 times splicing and heating.
Specification :
| Size & Weight | D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh |
| Fiber alignment | 6 motors core alignment |
| Fiber type | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
| Splice mode | Single fiber |
| Fiber diameter | Cladding diameter 80~150µm, coating 100~1000µm |
| Cleave length | 250µm cladding diameter 8~16mm,over 250µm cladding diameter 16mm |
| Splicing programs | Max. 100 |
| Splicing cycle time | 6 sec. SM-SM Fast program,12 sec. AUTO program |
| Heating programs | Max. 30 |
| Heating cycle time | Adjustable, 25 sec. typical |
| Splice protector | 10 ~ 60mm |
|
Splice image capture |
Max. 30 |
| Splice data storage | Max. 3000 |
| Splice loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
| Return loss | >>60dB |
| Loss estination | Provided |
| Operation condition | Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C,Wind velocity up to 15m/s |
| Storage condition | Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C) |
| Tension | 1.96~2.25N |
| Fiber view | Two cameras observation,4.1 inch color screen |
| Fiber magnification | 300x fo X or Y single axis view,180x for both X&Y dual axis view |
| Port | High speed USB, used for PC software connection and firmware upgrade |
| Electrode life | 3500 arc discharges |
| Power supply | AC100-240V, 50/60Hz |
| Battery module | 7800mAh High capacity battery,more than 300 times splicing and heating |
