Spesifikasi MESIN COR BETON ELECTRIC CONCRETE VIBRATOR HIGH FREQUENCY
1 CONVERTER FREQUENCY FU 1.8 (27 A) + 2 SHAFT (SELANG) VIBRATOR

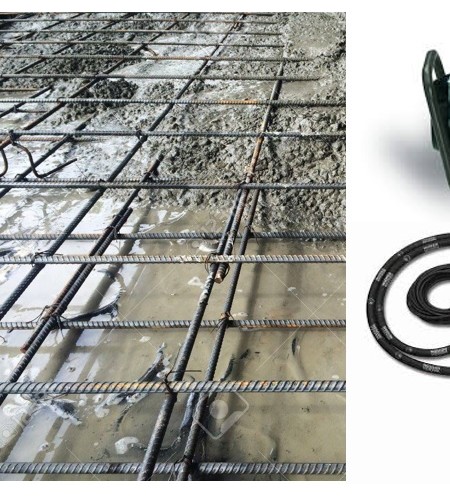

Wacker Neuson electromechanical transducers for deep vibrators are assembled on a reliable frame base, easy enough for carrying by one person.
Spesifikasi Product FU 1.8/200
Wacker Neuson electromechanical transducers for deep vibrators are assembled on a reliable frame base, easy enough for carrying by one person.
Spesifikasi Product FU 1.8/200
- Overall dimensions LxWxH: 495x220x340 mm
- Weight: 26 kg
- Power supply voltage: 380 V
- Mains frequency: 50-60 Hz
- Power consumption: 3.5 kVA
- Current consumption: 5 A
- Output voltage: 42 V
- Output power: 1.9 kVA
- Output current: 27 A
- Output frequency: 200 Hz
- Number of outlets: 2х32А
- Electrical cable: 2 m
- Degree of protection: IP 44
- Transport weight: 30 kg
- Transport dimensions LxWxH: 500x330x450 mm
| Technical specifications | IE38 | IE45 | IE58 |
|---|---|---|---|
| Diameter of the vibrator head mm | 38 | 45 | 58 |
| Length of the vibrator head mm | 285 | 320 | 327 |
| Weight kg | 10.4 | 12.3 | 14.3 |
| Protective hose Max. length* m | 10 | 10 | 10 |
| Effective diameter ** cm | 38 | 45 | 58 |
| Vibrations rpm | 12,000 | 12,000 | 12,000 |
| Engine / Motor *** | Asynchronous motor | Asynchronous motor | Asynchronous motor |
| Voltage V | 42 | 42 | 42 |
| Current A | 5 | 8 | 12 |
| Frequency Hz | 200 | 200 | 200 |
| Power cable m | 15 | 15 | 15 |
