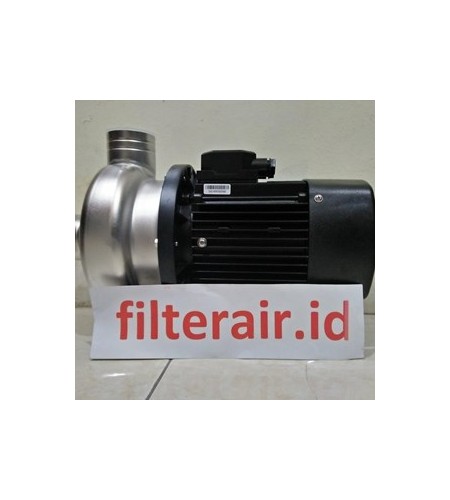

Jual Pompa Sentrifugal Stainless Steel Mapcato SS

Spesifikasi Pompa Sentrifugal Stainless Steel Mapcato

Jual pompa air sentrifugal stainless steel Mapcato seri SW dengan daya mulai 0,5 HP sampai dengan 3 HP, Mitra Water 0822 3333 4224

Stainless Steel Centrifugal Pump

sw-seriesFeature:
1/2HP-3HP, 2 pole high efficiency motor.
Pump body and impeller #304 stainless steel with super-tough plastic diffuser no pollution.
Aluminum motor housing, light weight and superior heat dissipation.

tiny-sw-series

Stainless Steel Impeller

Constructions:

con-1-sw-series con-2-sw-series

SW Series 50 Hz

No.
Description
Material
1
Motor casing
Aluminum/FC20
2
Pump casing
4
Bearing upper housing
FC20
04-1
Bearing lower housing
FC20
05
Impeller
SUS304
10
stator
11
Rotor & shaft
SUS410
12
Capacitor
13
Bearing (upper)
13-1
Bearing (lower)
15
Terminal box cover
ABS
17
Mechanical seal
CE/CA
19
O-Ring
NBR
20
Motor cooling fan
NYLON 66
20-1
Fan cover
STEEL
SW Series 60 Hz

No.
Description
Material
1
Motor casing
Aluminum/FC20
2
Pump casing
4
Bearing upper housing
FC20
04-1
Bearing lower housing
FC20
05
Impeller
SUS304
10
stator
11
Rotor & shaft
SUS410
12
Capacitor
13
Bearing (upper)
13-1
Bearing (lower)
15
Terminal box cover
ABS
17
Mechanical seal
CE/CA
19
O-Ring
NBR
20
Motor cooling fan
NYLON 66
20-1
Fan cover
STEEL
Performance Curve SW Series 50 Hz:

curve-50hz-sw-series

Specification
Type
Power
Discharge
Voltage
Maximum
Dimension
Weight
Head
Capacity
Capacity
HP
KW
Inch
mm
50Hz
Head(M)
Q(LPM)
H(mm)
L(mm)
W(mm)
KG
SW-50
1/2
0.4
1″
25
1PH/220-240V or3PH/380-415V

18
120
200
340
160
10
SW-100
1
0.75
1-1/2″
40
20
200
200
400
220
18
SW-200L
2
1.5
2″
50
20
400
240
420
250
20
SW-200H
2
1.5
2″
50
30
400
250
430
250
25
SW-300
3
2.2
2″
50
35
500
260
450
250
28
Performance Curve SW Series 60 Hz:

curve-60hz-sw-series

Specification
Type
Power
Discharge
Voltage
Maximum
Dimension
Weight
Head
Capacity
Capacity
HP
KW
Inch
mm
50Hz
Head(M)
Q(LPM)
H(mm)
L(mm)
W(mm)
KG
SW-50
1/2
0.4
1″
25
1PH/110-240V or3PH/220-445V

22
130
130
340
160
10
SW-100
1
0.75
1-1/2″
40
24
220
220
400
220
18
SW-200L
2
1.5
2″
50
26
400
240
420
250
20
SW-200H
2
1.5
2″
50
32
420
250
430
250
25
SW-300
3
1.5
2″
50
40
530
260
450
250
